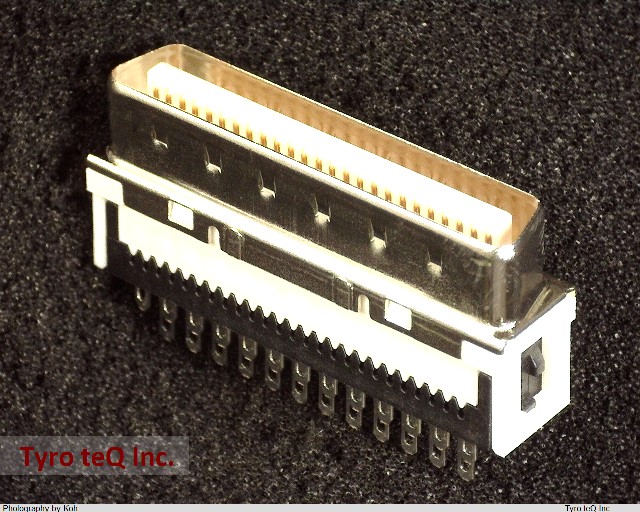

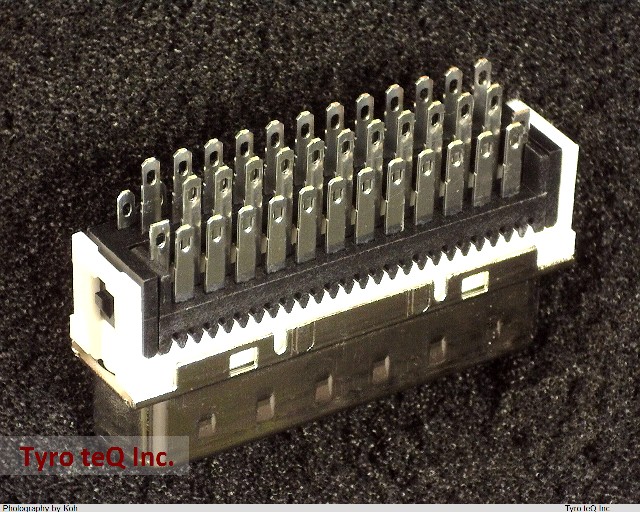

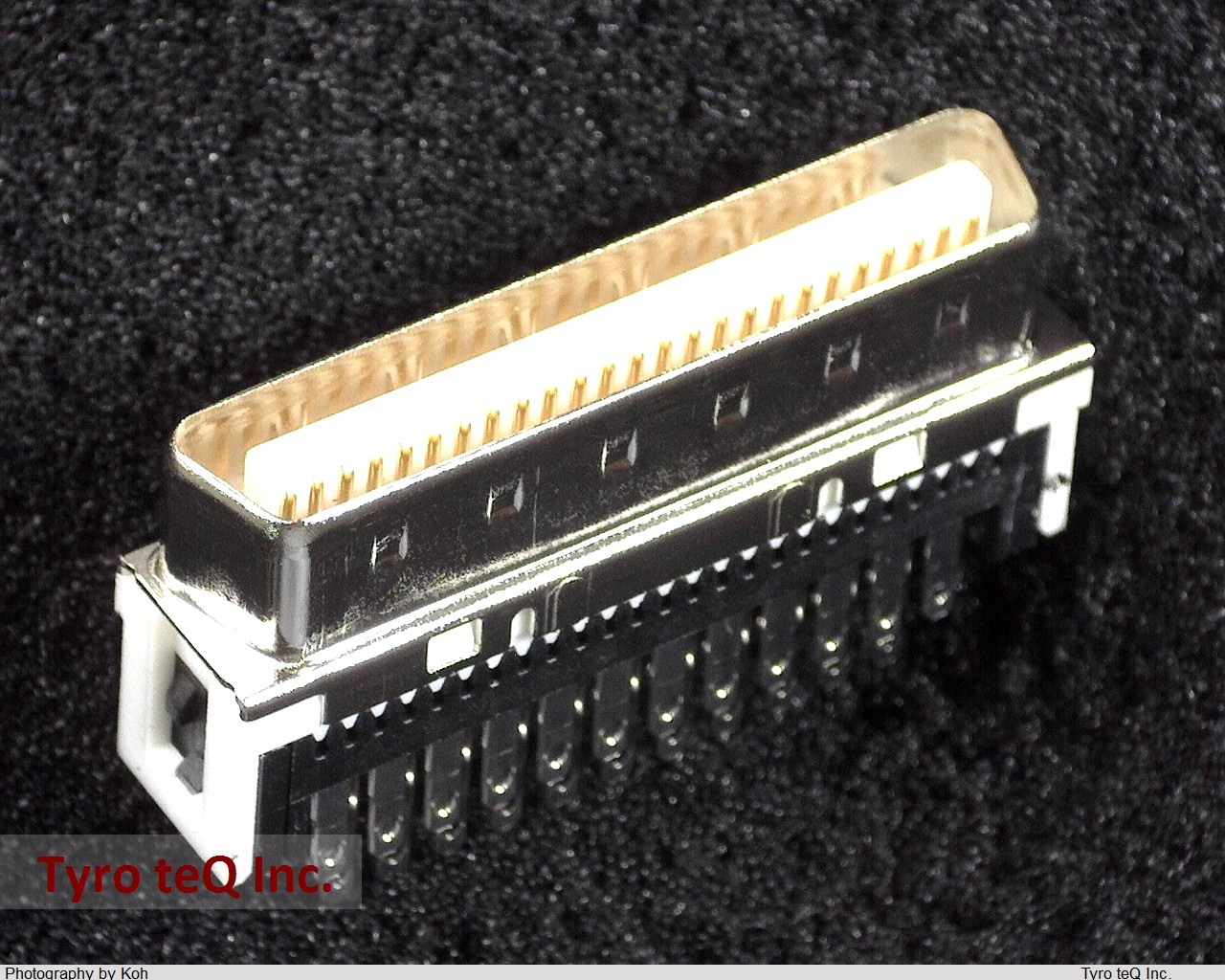

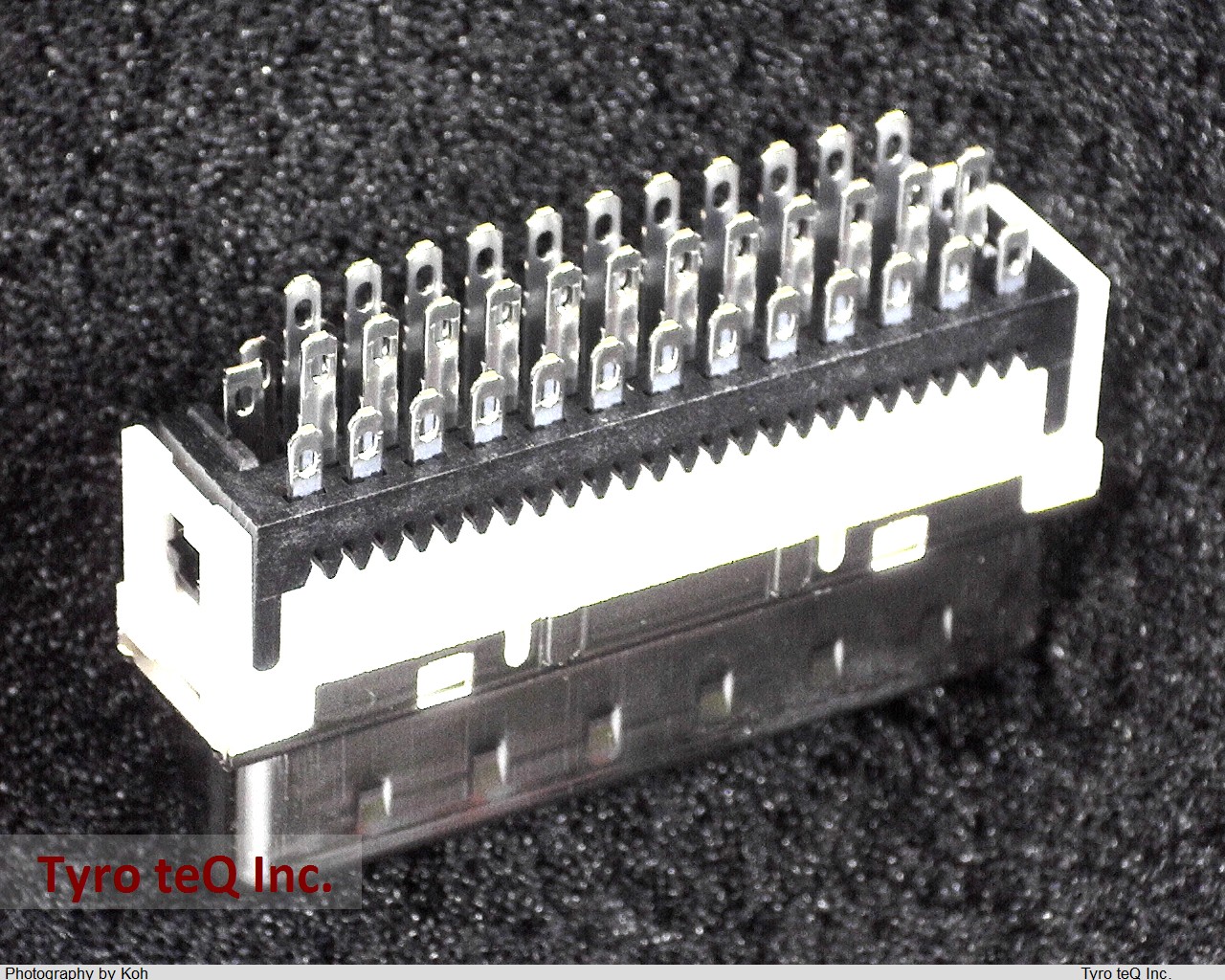

DX40-50P データシート

Name: DX40-50P
Brand: HIROSE
SKU: 140114888-0000-0000-0000

DX40-50P - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

DX40-50P の詳細情報

型番	DX40-50P
メーカー	HIROSE
データシート
Body Breadth	0.362 inch
Body Depth	0.677 inch
Body Length	1.505 inch
Body/Shell Style	PLUG
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	GOLD
Contact Finish - Termination	GOLD
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
DIN Conformance	NO
Dielectric Withstanding Voltage	300VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Diameter-Min	0.02 inch
Insulation Resistance	250000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	DX40-50P(55)
Mating Contact Pitch	0.05 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	BOARD
Number of Rows Loaded	2
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	ZINC ALLOY
Sub Category	D Type Connectors
Terminal Length	0.118 inch
Termination Type	SOLDER
Total Number of Contacts	50
UL Flammability Code	94V-0
Wire Size-Max	30 AWG
Wire Size-Min	30 AWG
