DM3BT-DSF-PEJS データシート

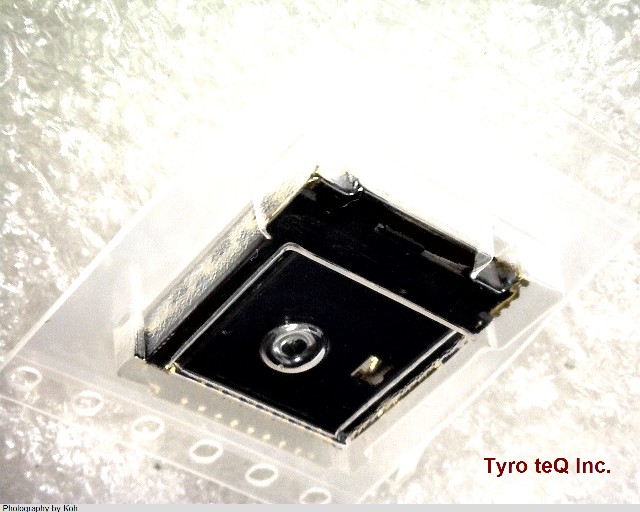

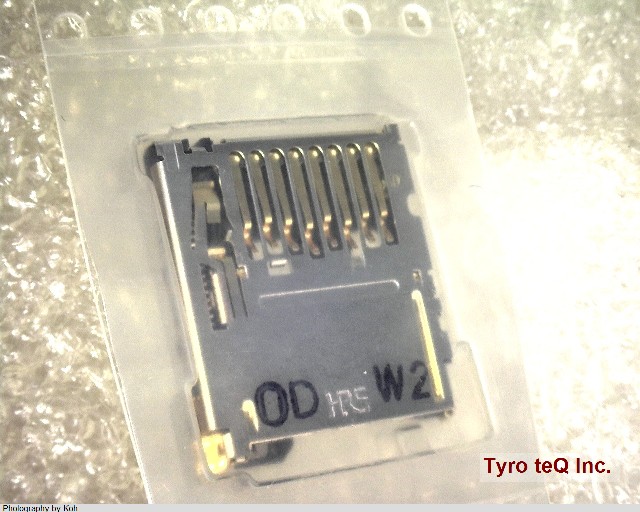

Name: DM3BT-DSF-PEJS
Brand: HIROSE
SKU: 140118713-0000-0000-0000

DM3BT-DSF-PEJS - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

DM3BT-DSF-PEJS の詳細情報

型番	DM3BT-DSF-PEJS
メーカー	HIROSE
データシート
Body Breadth	0.066 inch
Body Depth	0.628 inch
Body Length	0.545 inch
Body/Shell Style	SOCKET
Connector Type	PCB CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Tin (Sn)
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	100 mohm
Contact Style	COMPRESSION
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Durability	10000 Cycles
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	LIQUID CRYSTAL POLYMER
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.043 inch
Mixed Contacts	NO
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Ports	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	1.1 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	8
