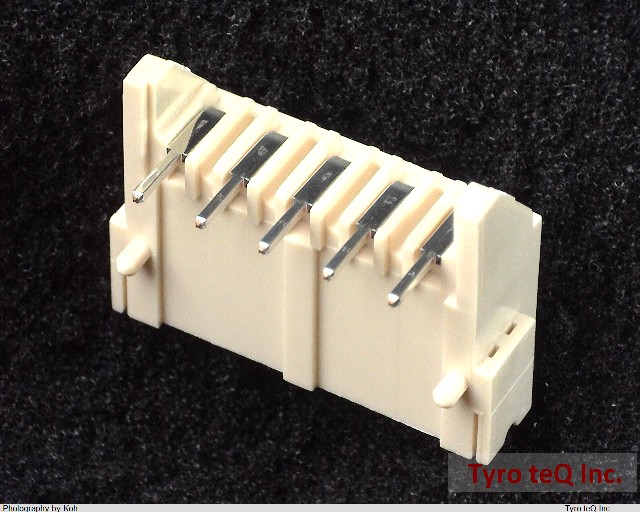

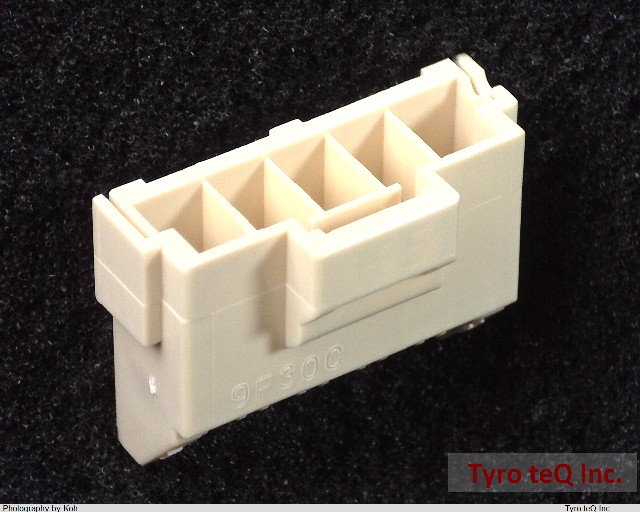

DF7-5P-3.96DS(25) データシート

Name: DF7-5P-3.96DS(25)
Brand: HIROSE
SKU: 140201807-0000-0000-0000

DF7-5P-3.96DS(25) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

DF7-5P-3.96DS(25) の詳細情報

型番	DF7-5P-3.96DS(25)
メーカー	HIROSE
データシート
Board Mounting Option	PEG
Body Breadth	0.413 inch
Body Depth	0.709 inch
Body Length	0.964 inch
Connector Type	BOARD CONNECTOR
Contact Arrangement	S0P5
Contact Finish - Termination	TIN
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Resistance	10 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	1500VAC V
Durability	30 Cycles
Insertion Force-Max	4.448 N
Insulation Resistance	1000000000 ohm
Insulator Color	BEIGE
Insulator Material	GLASS FILLED POLYAMIDE
Manufacturer Series	DF7
Mixed Contacts	YES
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-35 Cel
Reference Standard	UL,TUV
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.138 inch
Termination Type	SOLDER
Total Number of Contacts	5
Withdrawl Force-Min	.29746 N
