DF63-2022SCF データシート

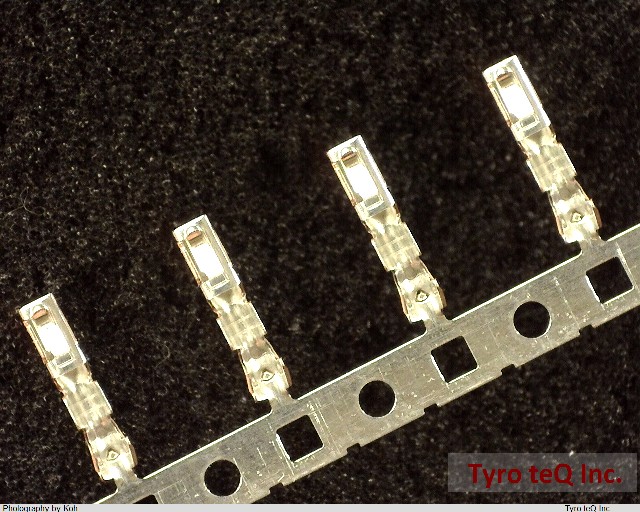

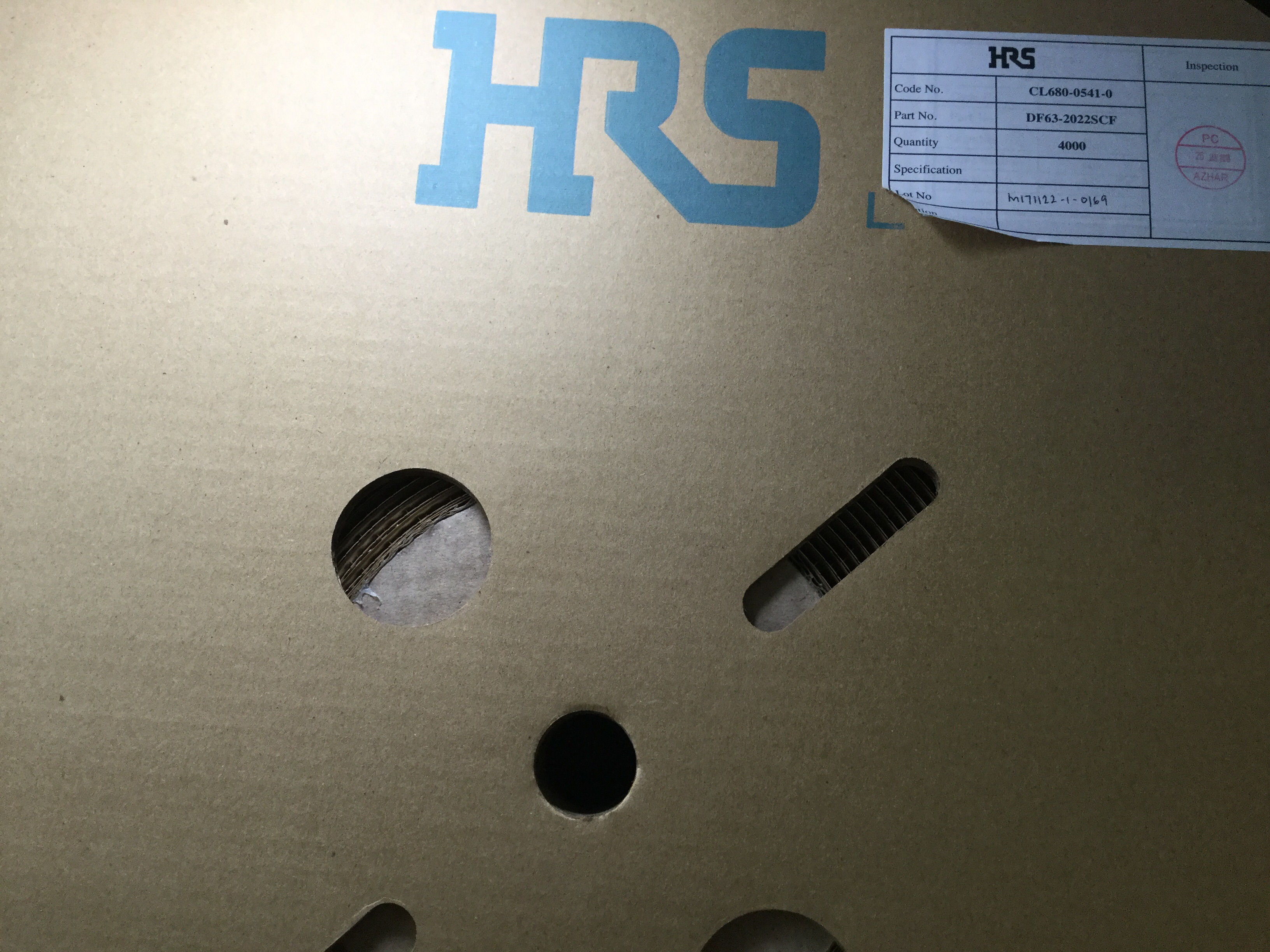

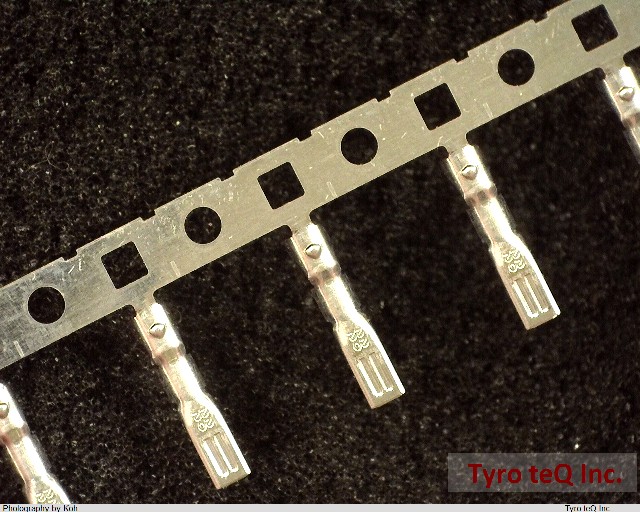

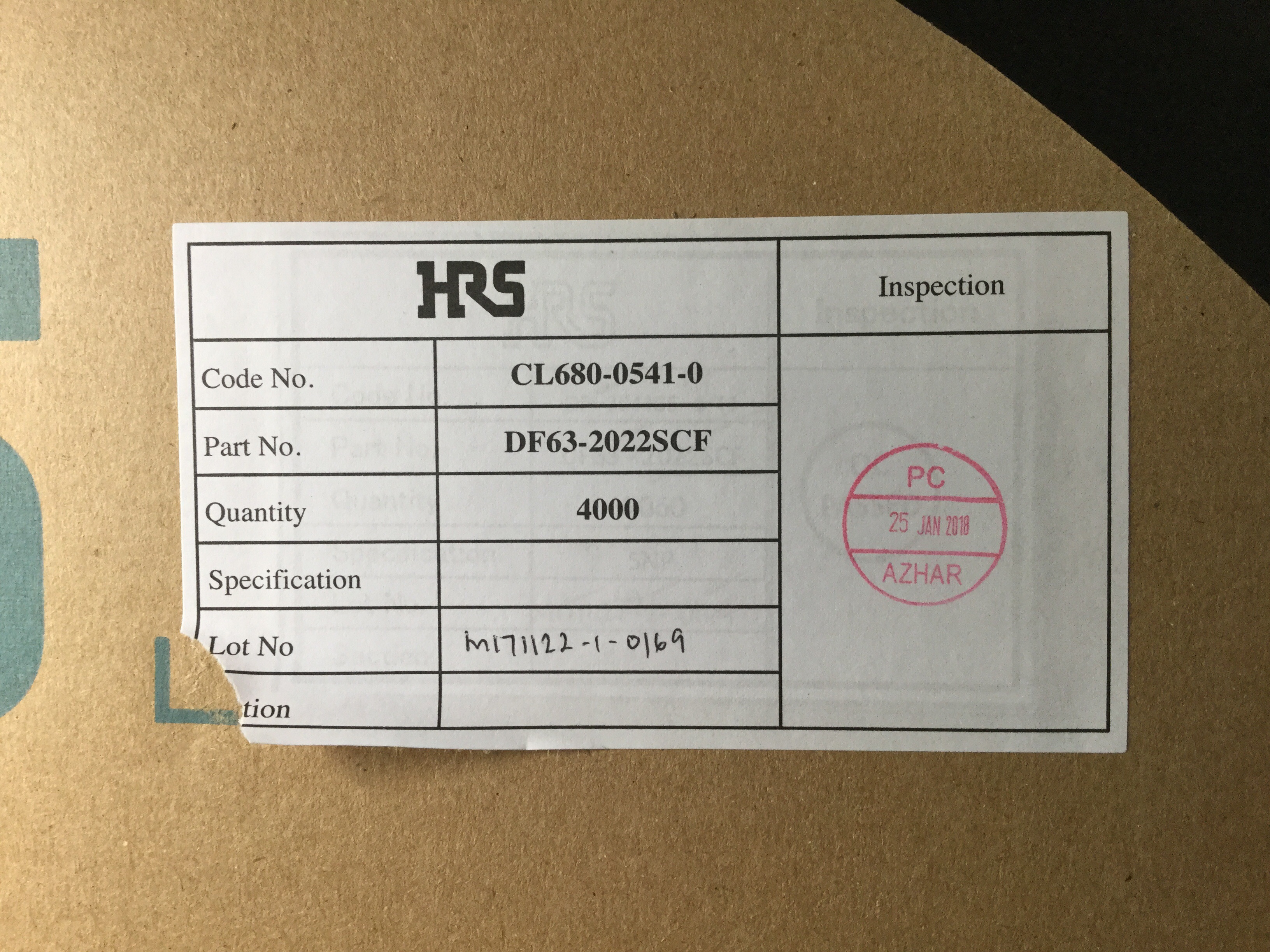

Name: DF63-2022SCF
Brand: HIROSE
SKU: 140201811-0000-0000-0000

DF63-2022SCF - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

DF63-2022SCF の詳細情報

型番	DF63-2022SCF
メーカー	HIROSE
データシート
Additional Feature	UNDER PLATING THICKNESS: NICKEL (39)
Approvals	CUL; TUV; UL V
Assembly Item Name	CONTACT
Connector Support Type	CONNECTOR ACCESSORY
Contact Gender	FEMALE
Contact Resistance	10 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Design Use	POWER
Finish Thickness	7.87
IEC Conformance	NO
MIL Conformance	NO
Material	COPPER ALLOY
Mounting Style	STRAIGHT
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Rated Current	11 A
Rated Voltage (AC)	630 V
Rated Voltage (DC)	630 V
Terminal Type	CRIMP
Used With	SOCKET
Wire Size-Max	20 AWG
Wire Size-Min	22 AWG
