DF40HC(3.0)-100DS-0.4V(51 データシート

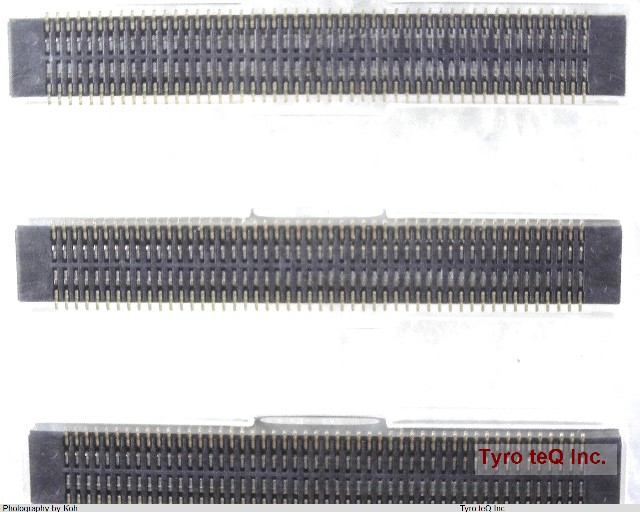

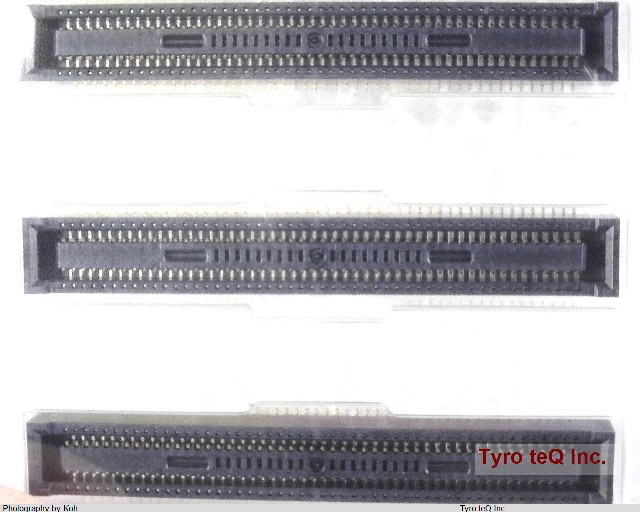

Name: DF40HC(3.0)-100DS-0.4V(51
Brand: HIROSE
SKU: 140202244-0000-0000-0000

DF40HC(3.0)-100DS-0.4V(51 - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

DF40HC(3.0)-100DS-0.4V(51 の詳細情報

型番	DF40HC(3.0)-100DS-0.4V(51
メーカー	HIROSE
データシート
Body Breadth	0.116 inch
Body Depth	0.114 inch
Body Length	0.89 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD STACKING CONNECTOR
Contact Finish - Mating	AU
Contact Gender	FEMALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Resistance	90 mohm
Contact Style	CENTRONIC
Dielectric Withstanding Voltage	100VAC V
Durability	30 Cycles
Filter Feature	NO
Insulation Resistance	50000000 ohm
Insulator Color	BLACK
Insulator Material	LIQUID CRYSTAL POLYMER
Mating Contact Pitch	0.016 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-35 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.35 mm
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	0.3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	0.4 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	100
UL Flammability Code	94V-0
