DF40C-50DP-0.4V(51) データシート

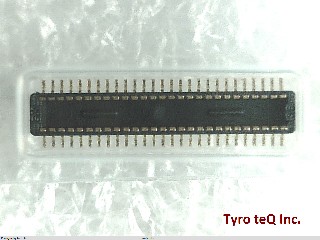

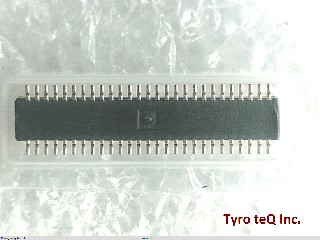

Name: DF40C-50DP-0.4V(51)
Brand: HIROSE
SKU: 140199790-0000-0000-0000

DF40C-50DP-0.4V(51) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

エンボステープ梱包

DF40C-50DP-0.4V(51) の詳細情報

型番	DF40C-50DP-0.4V(51)
メーカー	HIROSE
データシート
Additional Feature	ROHS COMPLIANT
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Tin (Sn)
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	90 mohm
DIN Conformance	NO
Dielectric Withstanding Voltage	100VAC V
Durability	30 Cycles
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	50000000 ohm
Insulator Color	BLACK
Insulator Material	LIQUID CRYSTAL POLYMER
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.016 inch
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-35 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.7178 mm
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	0.3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	.4 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	50
UL Flammability Code	94V-0
