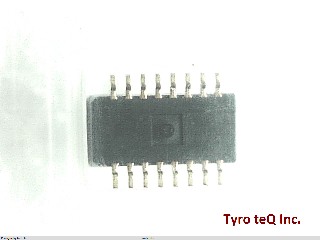

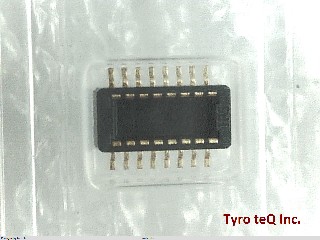

DF40C-12DP-0.4V(58) データシート

Name: DF40C-12DP-0.4V(58)
Brand: HIROSE
SKU: 140197322-0000-0000-0000

DF40C-12DP-0.4V(58) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

DF40C-12DP-0.4V(58) の詳細情報

型番	DF40C-12DP-0.4V(58)
メーカー	HIROSE
データシート
Body Breadth	0.073 inch
Body Depth	0.045 inch
Body Length	0.154 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	AU
Contact Gender	MALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Resistance	90 mohm
Contact Style	CENTRONIC
Dielectric Withstanding Voltage	100VAC V
Durability	30 Cycles
Insulation Resistance	50000000 ohm
Insulator Color	BLACK
Insulator Material	LIQUID CRYSTAL POLYMER
Manufacturer Series	DF40
Mating Contact Pitch	0.016 inch
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-35 Cel
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.7178 mm
Plating Thickness	2u inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	0.3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	.4064 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	12
