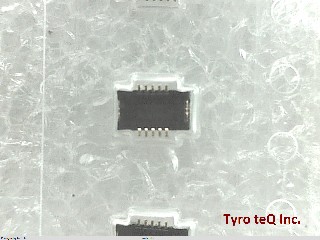

DF37NB-10DS-0.4V(51) データシート

Name: DF37NB-10DS-0.4V(51)
Brand: HIROSE
SKU: 140178978-0000-0000-0000

DF37NB-10DS-0.4V(51) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

エンボステープ梱包(8,000個/リール)

DF37NB-10DS-0.4V(51) の詳細情報

型番	DF37NB-10DS-0.4V(51)
メーカー	HIROSE
データシート
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Gold (Au) - with Nickel (Ni) barrier
Contact Gender	FEMALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Resistance	100 mohm
DIN Conformance	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	50000000 ohm
Insulator Color	BLACK
Insulator Material	LIQUID CRYSTAL POLYMER
JESD-609 Code	e4
MIL Conformance	NO
Mating Contact Pitch	0.016 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-35 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.286 mm
Rated Current (Signal)	0.3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	.4 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	10
UL Flammability Code	94V-0
