DF22-2S-7.92C(28) データシート

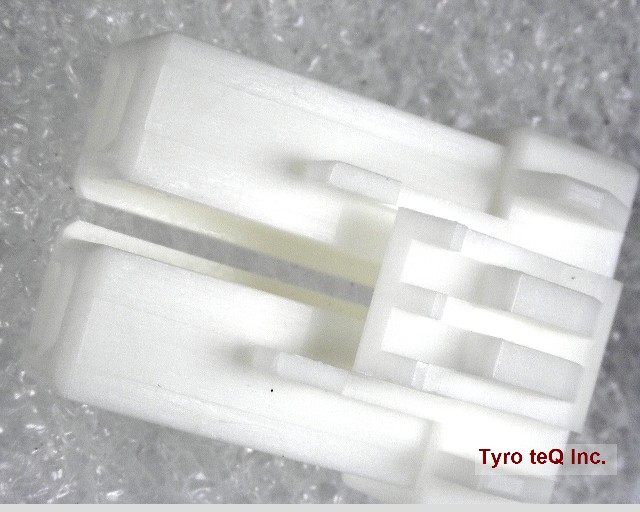

Name: DF22-2S-7.92C(28)
Brand: HIROSE
SKU: 140187625-0000-0000-0000

DF22-2S-7.92C(28) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

DF22-2S-7.92C(28) の詳細情報

型番	DF22-2S-7.92C(28)
メーカー	HIROSE
データシート
Additional Feature	PANEL MOUNTABLE
Body Breadth	0.303 inch
Body Depth	0.787 inch
Body Length	0.61 inch
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	NOT APPLICABLE
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	5 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	WHITE
Insulator Material	POLYAMIDE
MIL Conformance	NO
Mating Contact Pitch	0.312 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-35 Cel
Option	GENERAL PURPOSE
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	CRIMP
Total Number of Contacts	2
UL Flammability Code	94V-0
