DF1B-24DS-2.5RC データシート

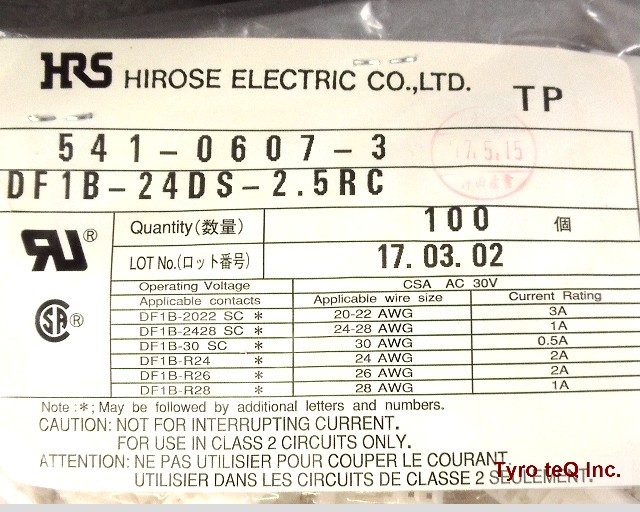

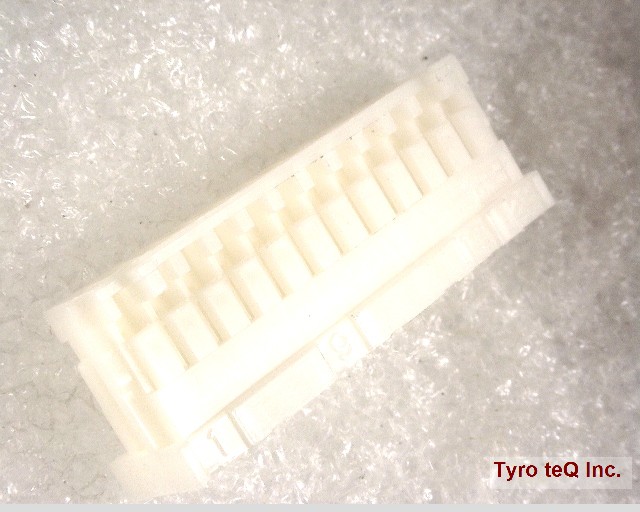

Name: DF1B-24DS-2.5RC
Brand: HIROSE
SKU: 140079059-0000-0000-0000

DF1B-24DS-2.5RC - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

DF1B-24DS-2.5RC の詳細情報

型番	DF1B-24DS-2.5RC
メーカー	HIROSE
データシート
Additional Feature	COMPATIBLE CONTACTS: DF1B-2022SCF; DF1B-2022SCFA
Body Breadth	0.315 inch
Body Depth	0.453 inch
Body Length	1.28 inch
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	NOT APPLICABLE
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	650VAC V
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	4.3924 N
Insulation Resistance	1000000000 ohm
Insulator Color	WHITE
Insulator Material	POLYAMIDE
MIL Conformance	NO
Mating Contact Pitch	0.098 inch
Mating Contact Row Spacing	0.098 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-35 Cel
Option	GENERAL PURPOSE
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	3 A
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	CRIMP AND IDC
Total Number of Contacts	24
UL Flammability Code	94V-0
Withdrawl Force-Min	.417 N
