DF1B-16DES-2.5RC データシート

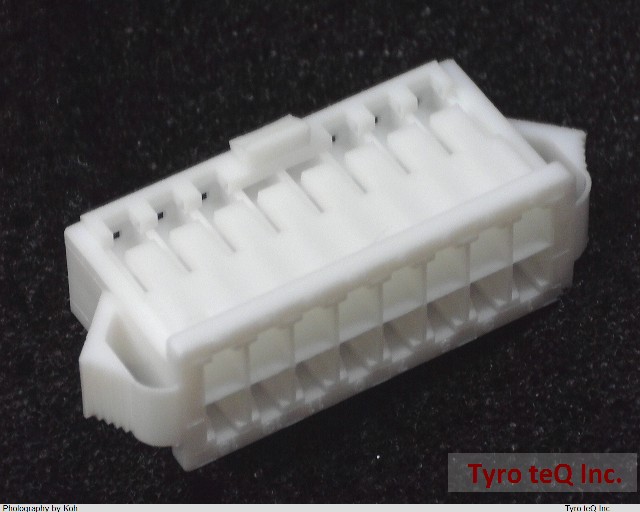

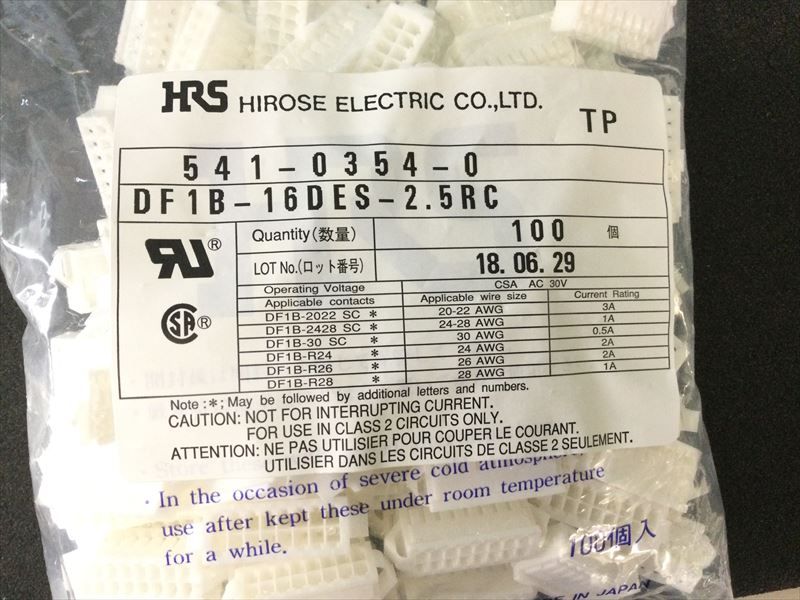

Name: DF1B-16DES-2.5RC
Brand: HIROSE
SKU: 140079019-0000-0000-0000

DF1B-16DES-2.5RC - HIROSE の商品詳細ページです。

64時間9分後以内に見積もり依頼を頂ければ、
04月23日(火) 9:00 までに見積もり回答いたします。

検討リストに追加する

DF1B-16DES-2.5RC の詳細情報

型番	DF1B-16DES-2.5RC
メーカー	HIROSE
データシート
Additional Feature	COMPATIBLE CONTACTS: DF1B-2022SCF; DF1B-2022SCFA
Body Breadth	0.343 inch
Body Depth	0.453 inch
Body Length	1.137 inch
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	NOT APPLICABLE
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	650VAC V
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	4.3924 N
Insulation Resistance	1000000000 ohm
Insulator Color	WHITE
Insulator Material	POLYAMIDE
MIL Conformance	NO
Mating Contact Pitch	0.098 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-35 Cel
Option	GENERAL PURPOSE
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	3 A
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	CRIMP AND IDC
Total Number of Contacts	16
UL Flammability Code	94V-0
Withdrawl Force-Min	.417 N
