DF1B-14DS-2.5RC データシート

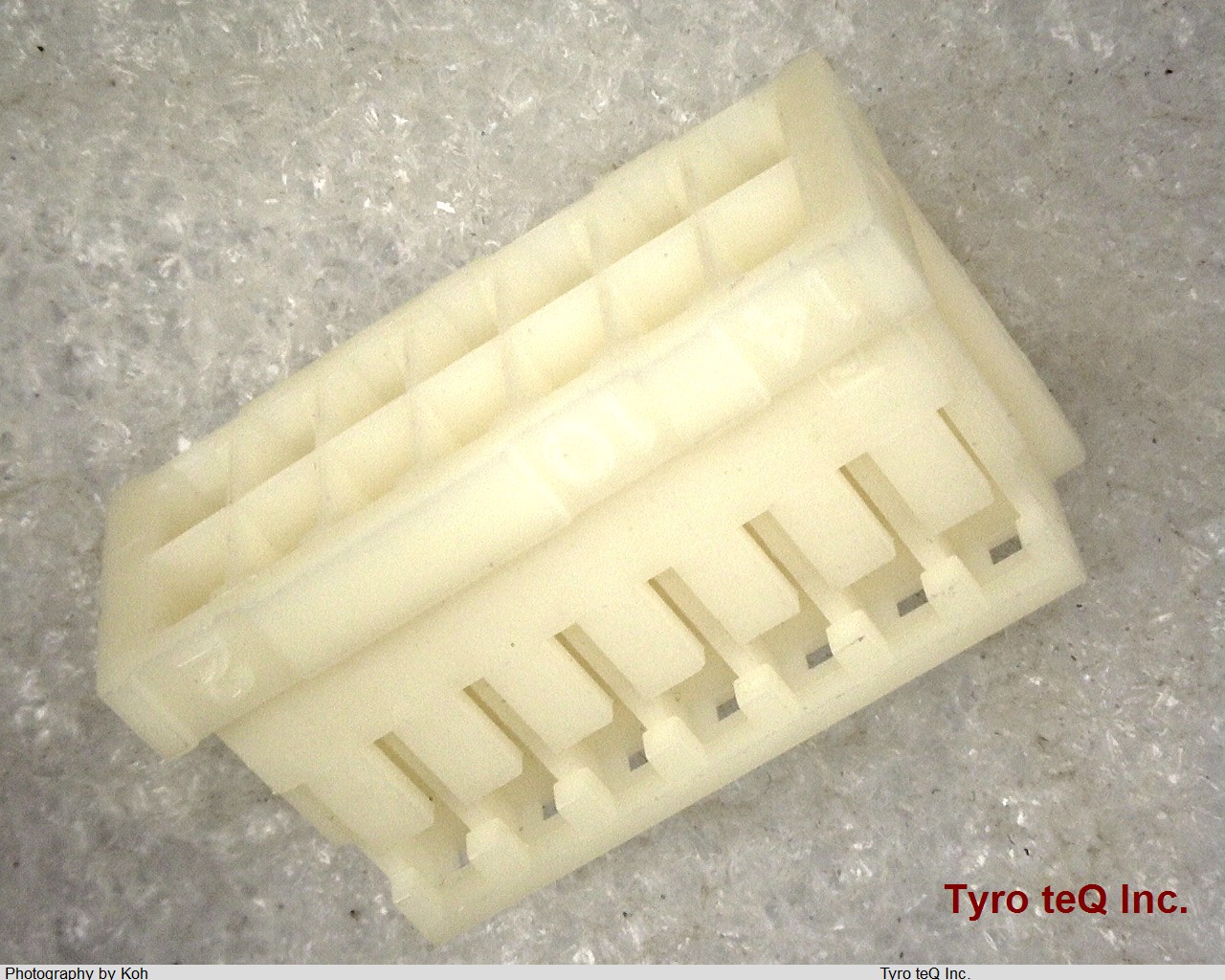

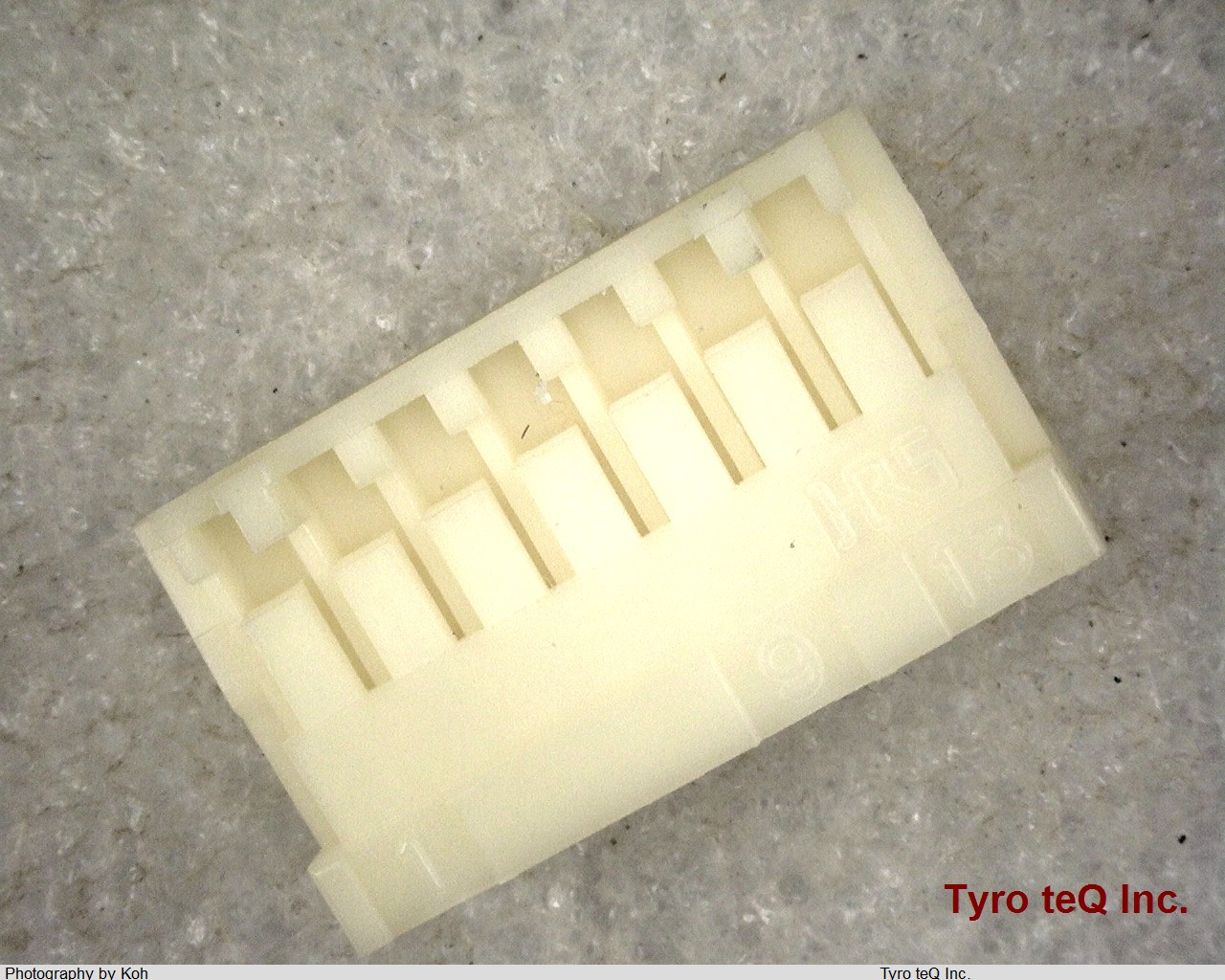

Name: DF1B-14DS-2.5RC
Brand: HIROSE
SKU: 140079013-0000-0000-0000

DF1B-14DS-2.5RC - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

DF1B-14DS-2.5RC の詳細情報

型番	DF1B-14DS-2.5RC
メーカー	HIROSE
データシート
Additional Feature	COMPATIBLE CONTACTS: DF1B-2022SCF; DF1B-2022SCFA
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	TIN/GOLD
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	650VAC V
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	4.3924 N
Insulation Resistance	1000000000 ohm
Insulator Color	WHITE
Insulator Material	POLYAMIDE
JESD-609 Code	e3/e4
MIL Conformance	NO
Mating Contact Pitch	0.098 inch
Mating Contact Row Spacing	0.098 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-35 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	CRIMP AND IDC
Total Number of Contacts	14
UL Flammability Code	94V-0
