DF1-9P-2.5DSA データシート

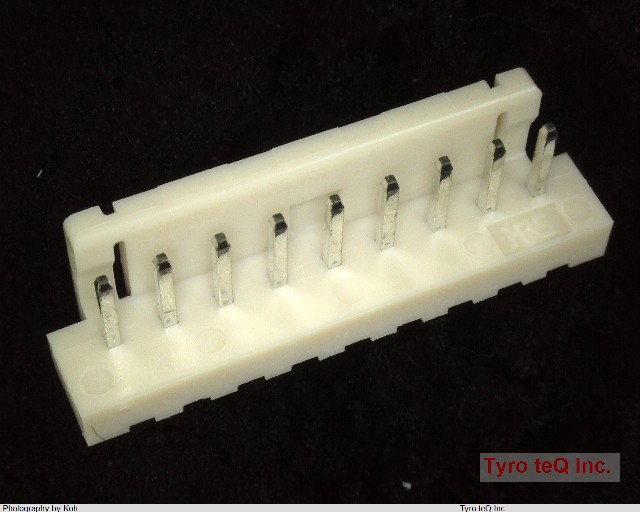

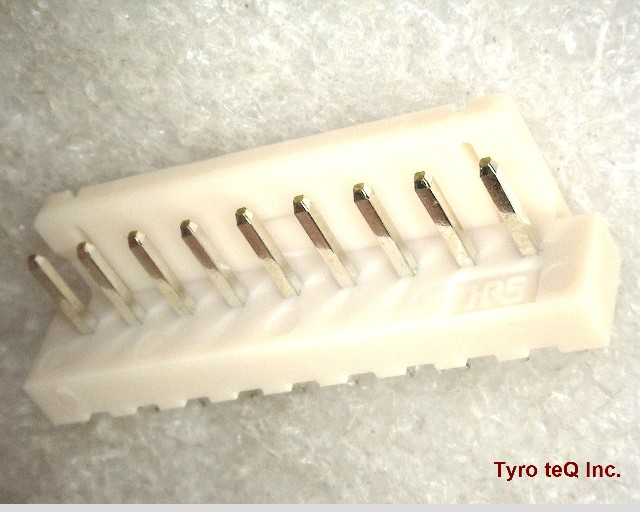

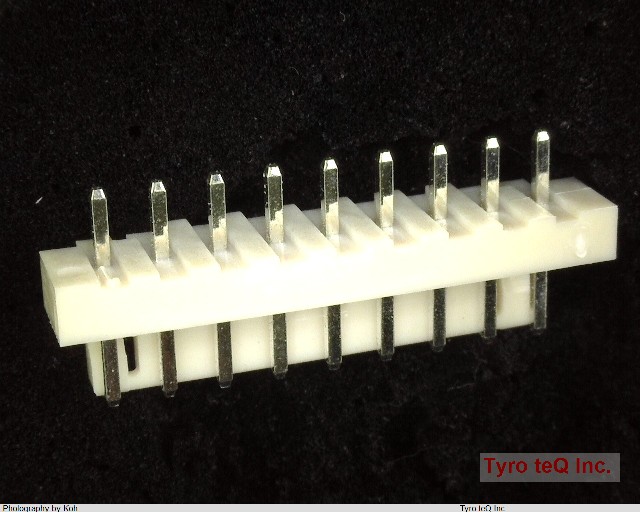

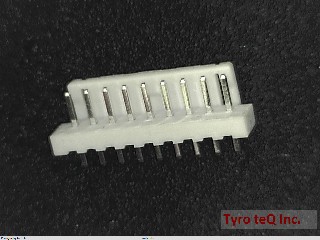

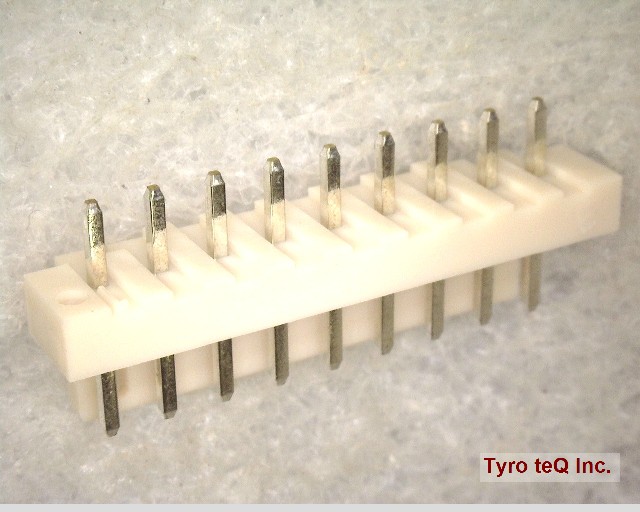

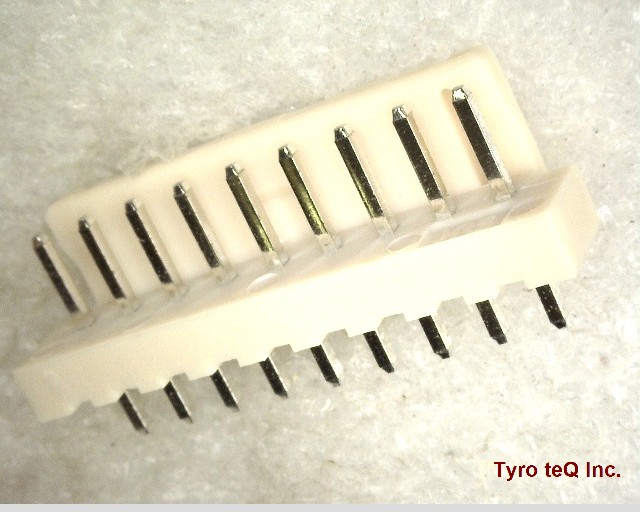

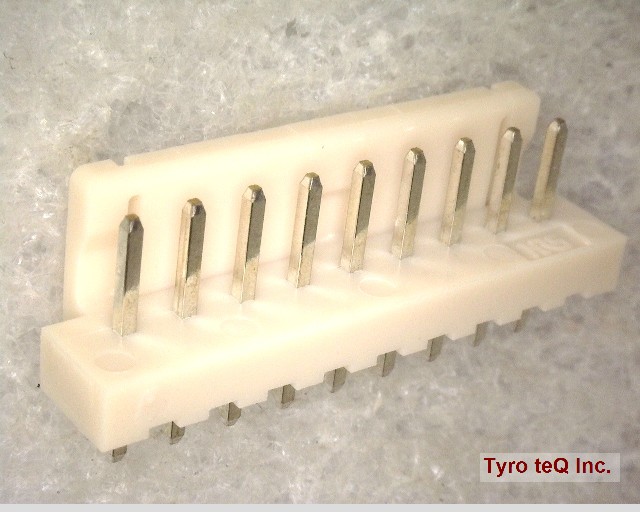

Name: DF1-9P-2.5DSA
Brand: HIROSE
SKU: 140161048-0000-0000-0000

DF1-9P-2.5DSA - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

DF1-9P-2.5DSA の詳細情報

型番	DF1-9P-2.5DSA
メーカー	HIROSE
データシート
Additional Feature	LOW PROFILE
Body Breadth	0.236 inch
Body Depth	0.295 inch
Body Length	0.984 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	TIN
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	650VAC V
Durability	30 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	4.3924 N
Insulation Resistance	1000000000 ohm
Insulator Color	BROWN
Insulator Material	POLYAMIDE
JESD-609 Code	e3
MIL Conformance	NO
Manufacturer Series	DF1
Mating Contact Pitch	0.098 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.118 inch
Terminal Pitch	2.5 mm
Termination Type	SOLDER
Total Number of Contacts	9
UL Flammability Code	94V-0
Withdrawl Force-Min	.556 N
