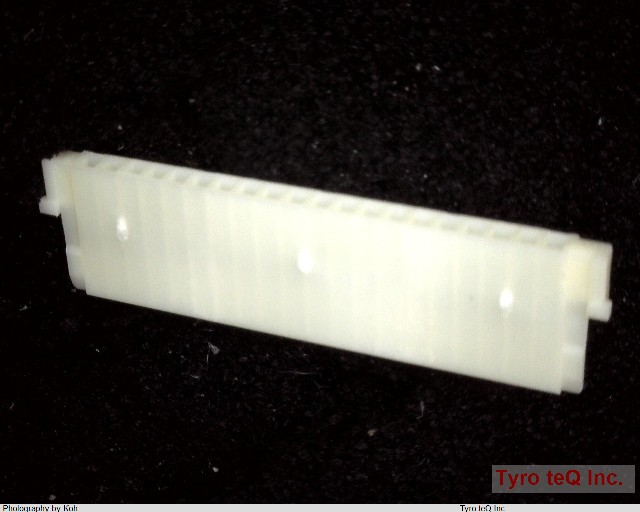

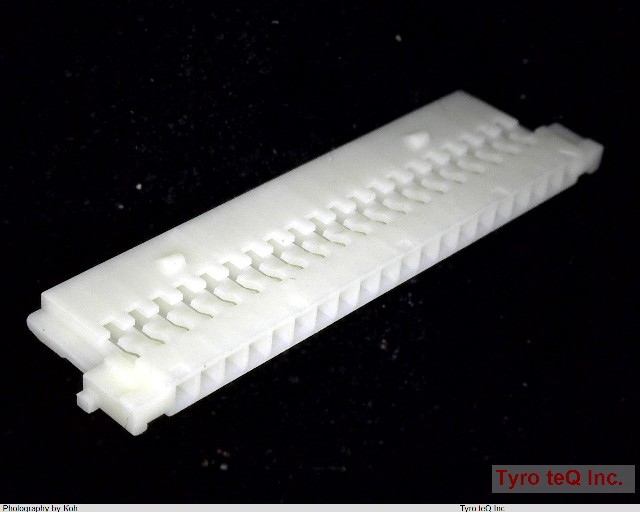

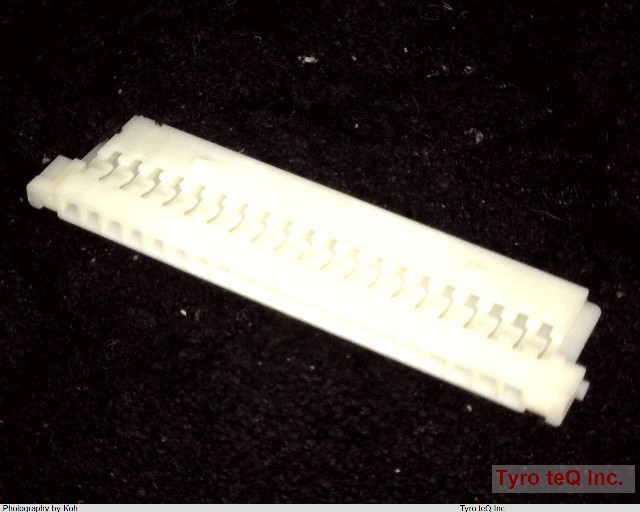

DF19-20S-1C データシート

Name: DF19-20S-1C
Brand: HIROSE
SKU: 140098203-0000-0000-0000

DF19-20S-1C - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

DF19-20S-1C の詳細情報

型番	DF19-20S-1C
メーカー	HIROSE
データシート
Additional Feature	LOW PROFILE
Body Breadth	0.059 inch
Body Depth	0.24 inch
Body Length	0.925 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	NOT APPLICABLE
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	300VAC V
Durability	30 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	3.0024 N
Insulation Diameter-Min	0.02 inch
Insulation Resistance	500000000 ohm
Insulator Color	BEIGE
Insulator Material	POLYAMIDE
MIL Conformance	NO
Mating Contact Pitch	0.039 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-35 Cel
Option	GENERAL PURPOSE
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	CRIMP
Total Number of Contacts	20
UL Flammability Code	94V-0
Wire Size-Max	28 AWG
Wire Size-Min	36 AWG
Withdrawl Force-Min	.199882 N
