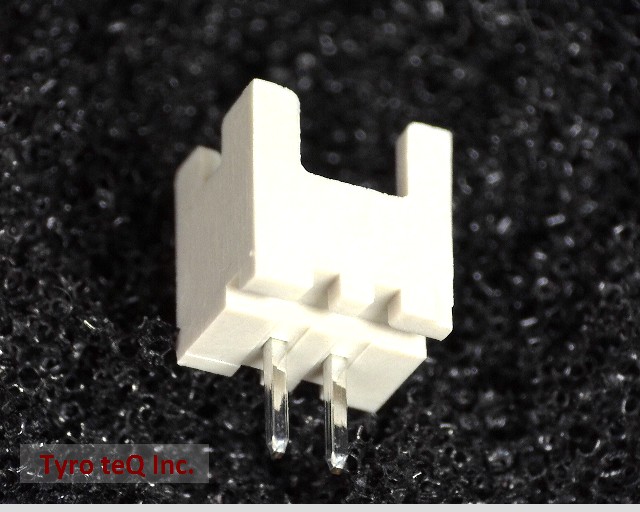

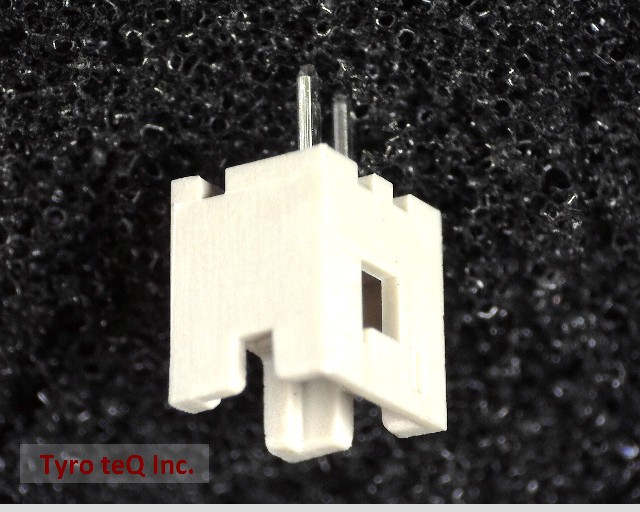

DF13-2P-1.25DSA データシート

Name: DF13-2P-1.25DSA
Brand: HIROSE
SKU: 140078761-0000-0000-0000

DF13-2P-1.25DSA - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

DF13-2P-1.25DSA の詳細情報

型番	DF13-2P-1.25DSA
メーカー	HIROSE
データシート
Additional Feature	LOW PROFILE
Body Breadth	0.134 inch
Body Depth	0.169 inch
Body Length	0.163 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Gold (Au) - with Nickel (Ni) barrier
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Durability	30 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	3 N
Insulation Resistance	500000000 ohm
Insulator Color	BEIGE
Insulator Material	POLYAMIDE
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.049 inch
Mating Information	DF13-2S-1.25C
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-35 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Plating Thickness	8u inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.091 inch
Terminal Pitch	1.25 mm
Termination Type	SOLDER
Total Number of Contacts	2
UL Flammability Code	94V-0
Withdrawl Force-Min	0.3 N
