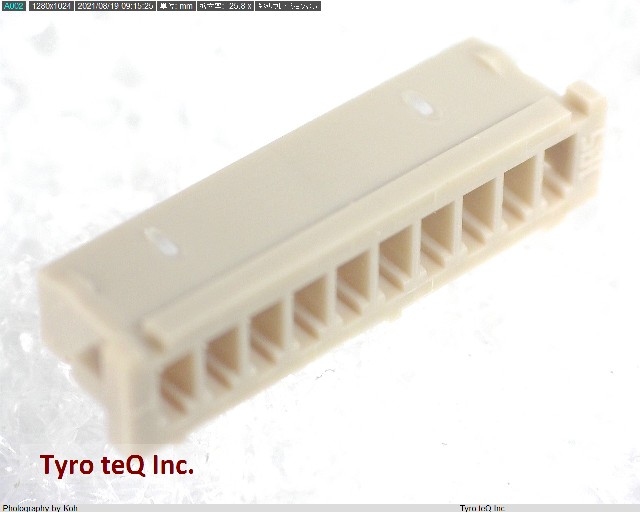

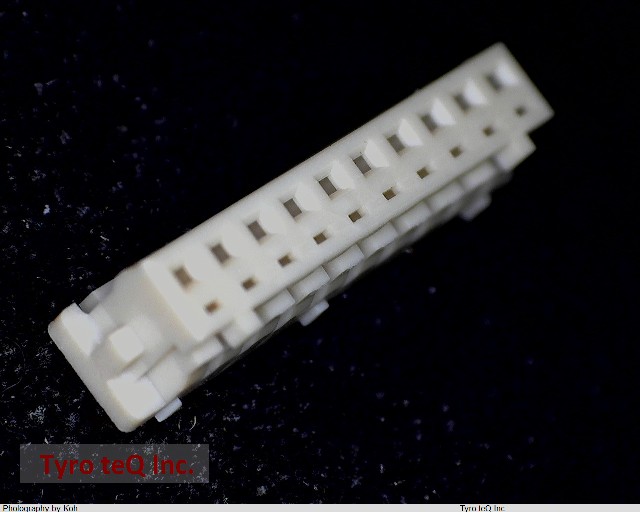

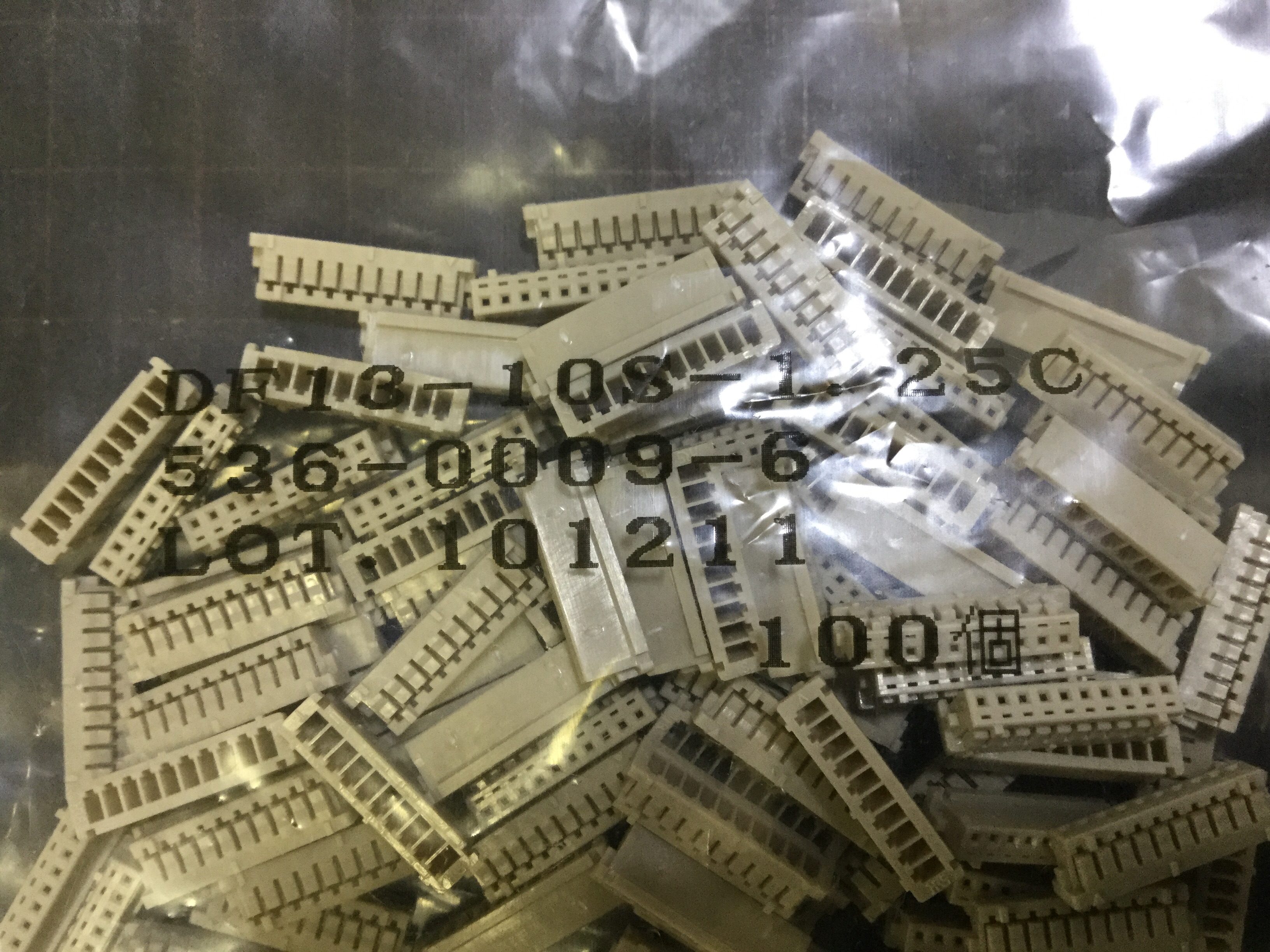

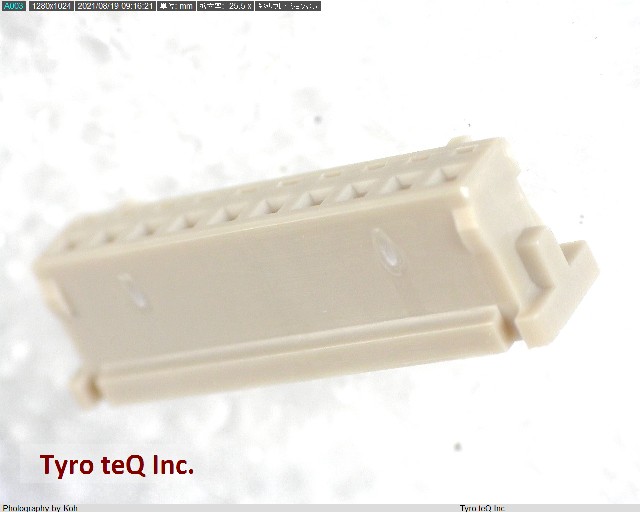

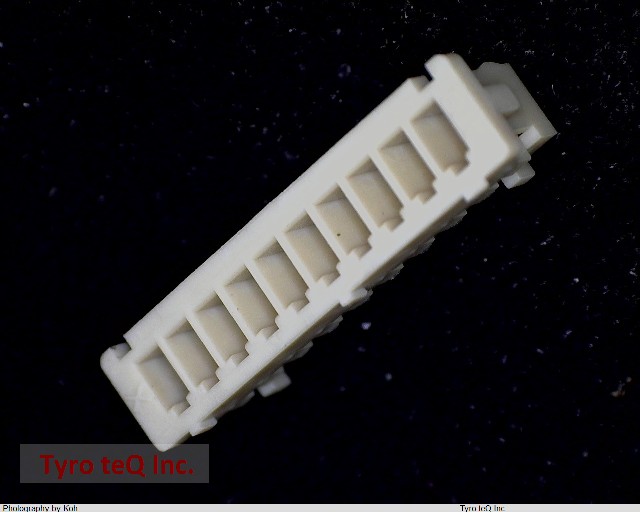

DF13-10S-1.25C データシート

Name: DF13-10S-1.25C
Brand: HIROSE
SKU: 140078759-0000-0000-0000

DF13-10S-1.25C - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

DF13-10S-1.25C の詳細情報

型番	DF13-10S-1.25C
メーカー	HIROSE
データシート
Additional Feature	COMPATIBLE CONTACTS: DF13-2630SCF; DF13-2630SCFA
Body Breadth	0.126 inch
Body Depth	0.157 inch
Body Length	0.557 inch
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	MATTE TIN
Contact Finish - Termination	MATTE TIN
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Durability	30 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	3 N
Insulation Resistance	500000000 ohm
Insulator Color	BEIGE
Insulator Material	POLYAMIDE
JESD-609 Code	e3
MIL Conformance	NO
Manufacturer Series	DF13
Mating Contact Pitch	0.049 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-35 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	CRIMP
Total Number of Contacts	10
UL Flammability Code	94V-0
Withdrawl Force-Min	0.3 N
