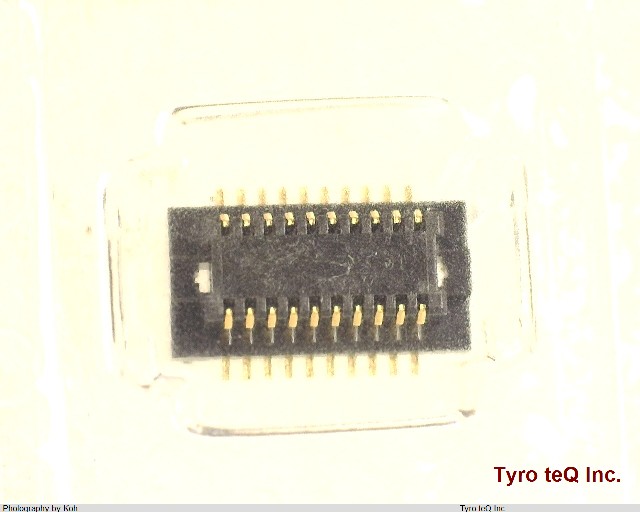

DF12NC-20DS-0.5V(51) データシート

Name: DF12NC-20DS-0.5V(51)
Brand: HIROSE
SKU: 400045166-0000-0000-0000

DF12NC-20DS-0.5V(51) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

DF12NC-20DS-0.5V(51) の詳細情報

型番	DF12NC-20DS-0.5V(51)
メーカー	HIROSE
データシート
Body Breadth	0.142 inch
Body Depth	0.106 inch
Body Length	0.28 inch
Connector Type	BOARD STACKING CONNECTOR
Contact Finish - Termination	Gold (Au)
Contact Gender	MALE
Contact Pattern	RECTANGULAR
Contact Resistance	50 mohm
Contact Style	CENTRONIC
Dielectric Withstanding Voltage	150VAC V
Durability	50 Cycles
Filter Feature	NO
Insulation Resistance	500000000 ohm
Insulator Color	BLACK
Insulator Material	POLYAMIDE
JESD-609 Code	e4
Mating Contact Pitch	0.02 inch
Mating Information	MULTIPAL MATING PARTS AVAILBLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	3.6 mm
Rated Current (Signal)	0.3 A
Reference Standard	UL
Terminal Pitch	0.5 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	20
UL Flammability Code	94V-0
