DF12(3.0)-60DS-0.5V(86) データシート

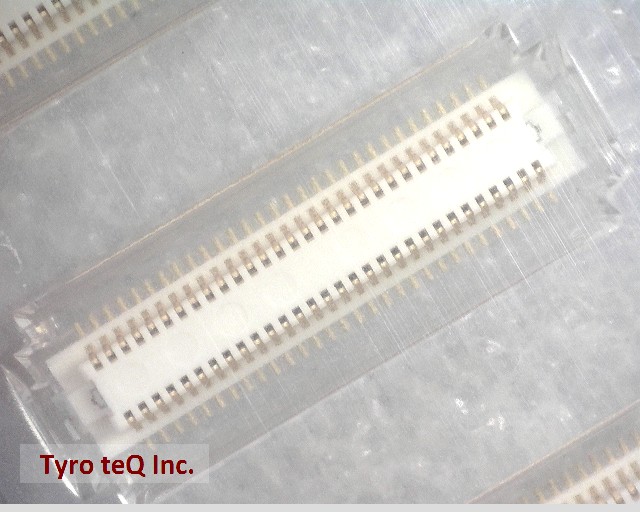

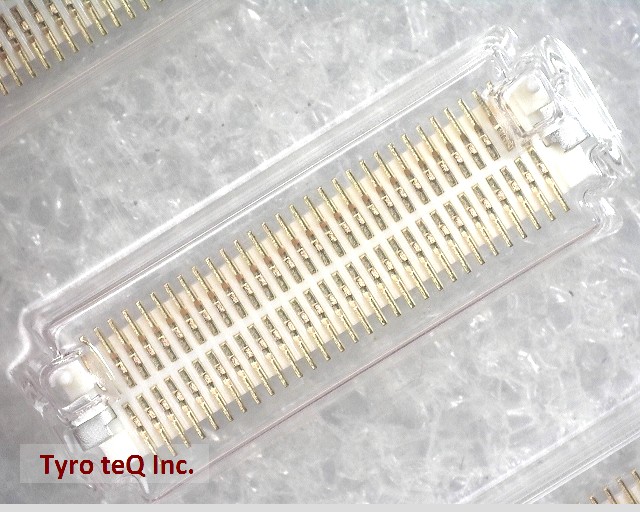

Name: DF12(3.0)-60DS-0.5V(86)
Brand: HIROSE
SKU: 140201508-0000-0000-0000

DF12(3.0)-60DS-0.5V(86) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

DF12(3.0)-60DS-0.5V(86) の詳細情報

型番	DF12(3.0)-60DS-0.5V(86)
メーカー	HIROSE
データシート
Body Breadth	0.142 inch
Body Depth	0.087 inch
Body Length	0.673 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD STACKING CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Gold (Au)
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	50 mohm
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	150VAC V
Durability	50 Cycles
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	500000000 ohm
Insulator Color	BEIGE
Insulator Material	POLYAMIDE
JESD-609 Code	e4
MIL Conformance	NO
Mating Contact Pitch	0.02 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-45 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	3.6068 mm
Rated Current (Signal)	0.3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	.5 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	60
UL Flammability Code	94V-0
