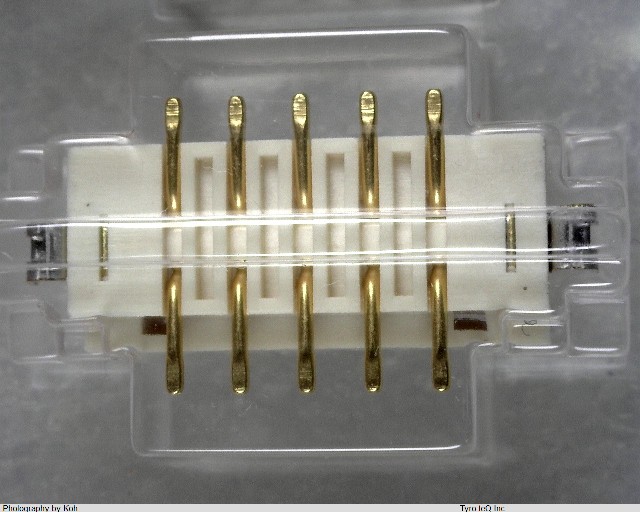

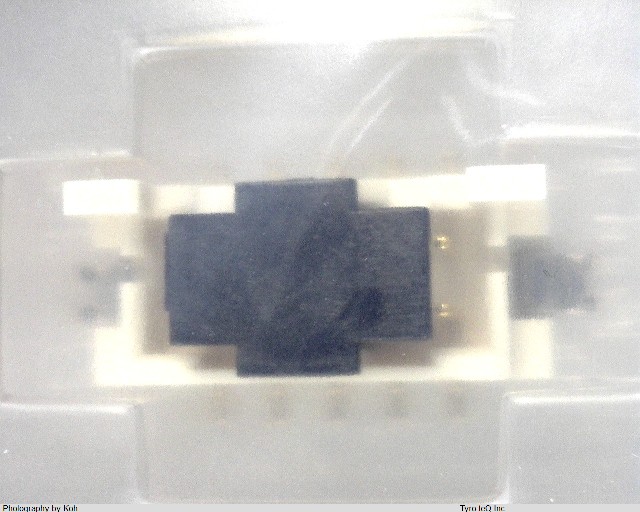

DF11C-10DP-2V(57) データシート

Name: DF11C-10DP-2V(57)
Brand: HIROSE
SKU: 140187785-0000-0000-0000

DF11C-10DP-2V(57) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

DF11C-10DP-2V(57) の詳細情報

型番	DF11C-10DP-2V(57)
メーカー	HIROSE
データシート
Board Mounting Option	LOCATING POSTS
Body Breadth	0.244 inch
Body Depth	0.283 inch
Body Length	0.571 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Tin (Sn) - with Nickel (Ni) barrier
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	650VAC V
Durability	50 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	4.3924 N
Insulation Resistance	1000000000 ohm
Insulator Color	BEIGE
Insulator Material	POLYAMIDE
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.079 inch
Mating Contact Row Spacing	0.079 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING MECH
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	8.2804 mm
Polarization Key	GUIDE SLOT(S)
Rated Current (Signal)	2 A
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	2 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	10
UL Flammability Code	94V-0
Withdrawl Force-Min	.3058 N
