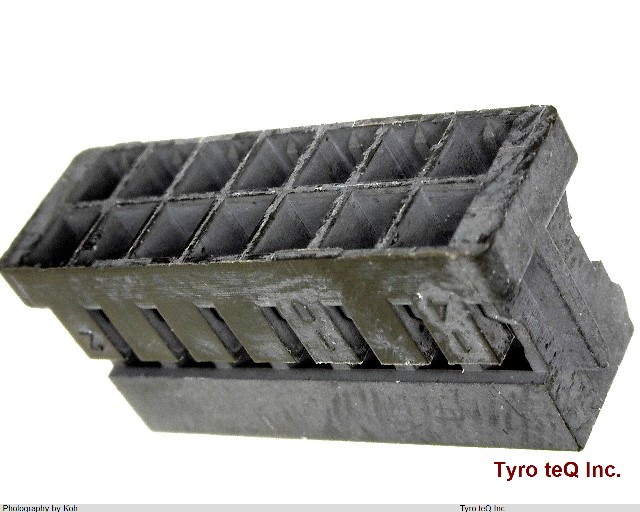

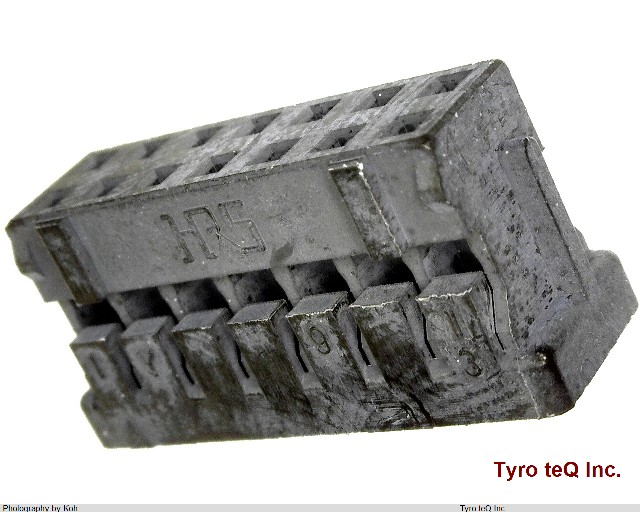

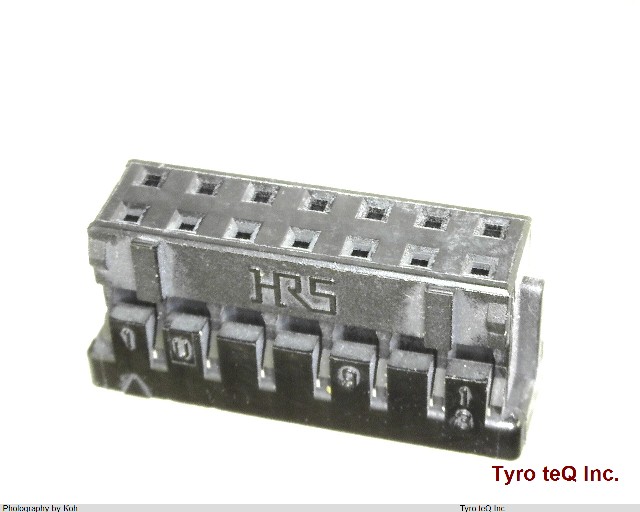

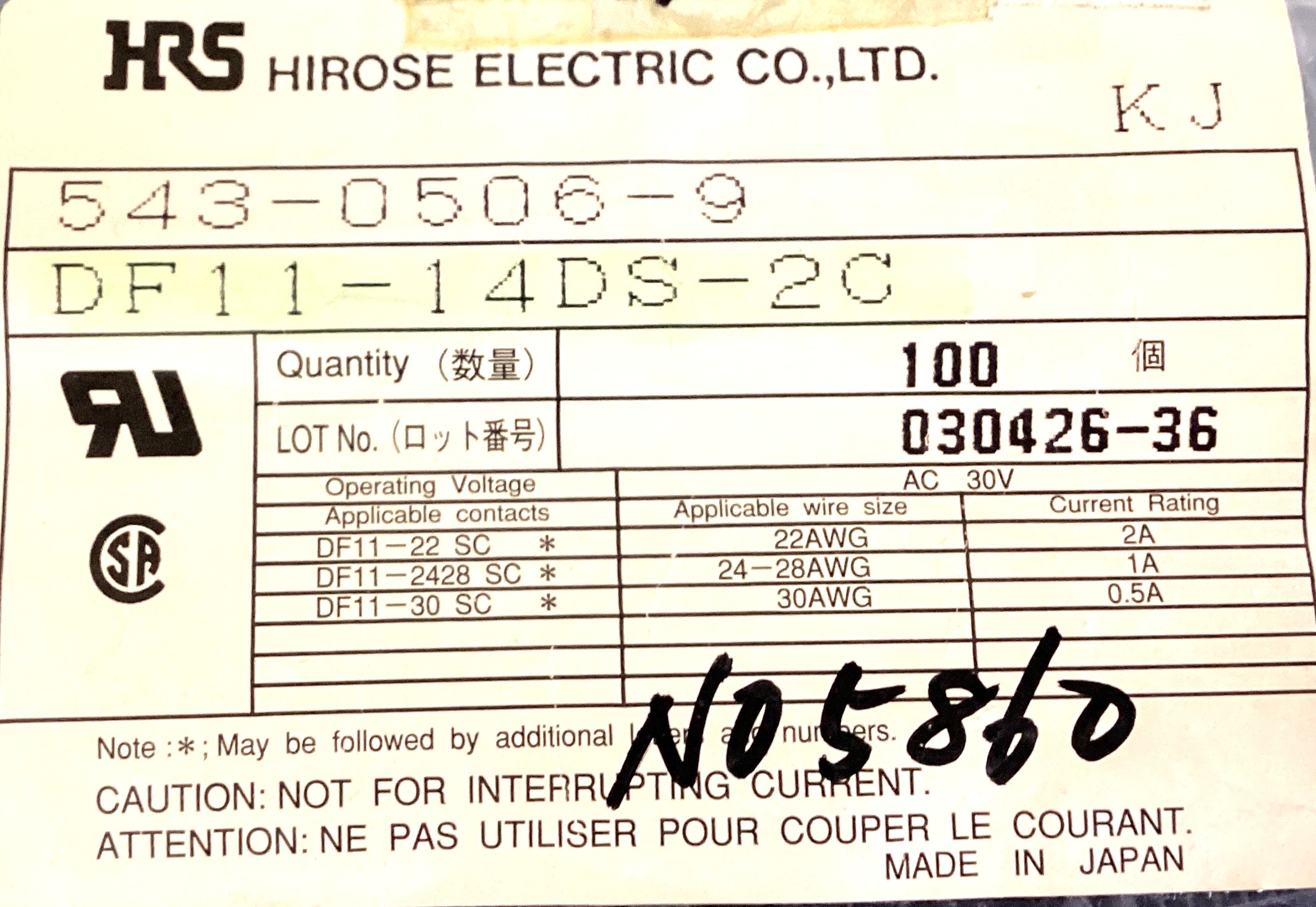

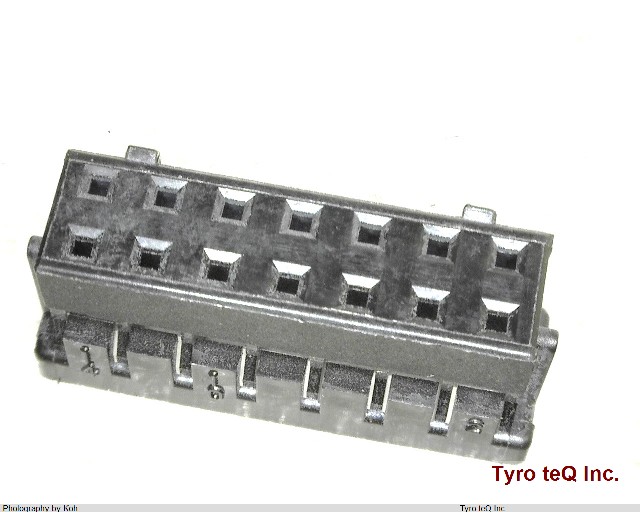

DF11-14DS-2C データシート

Name: DF11-14DS-2C
Brand: HIROSE
SKU: 140079605-0000-0000-0000

DF11-14DS-2C - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

DF11-14DS-2C の詳細情報

型番	DF11-14DS-2C
メーカー	HIROSE
データシート
Body Breadth	0.197 inch
Body Depth	0.287 inch
Body Length	0.63 inch
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Tin (Sn)
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	650VAC V
Durability	30 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	4.4 N
Insulation Diameter-Min	0.03 inch
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYAMIDE
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.079 inch
Mating Contact Row Spacing	0.079 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	2 A
Reference Standard	CSA;CUL;UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	CRIMP
Total Number of Contacts	14
UL Flammability Code	94V-0
Wire Size-Max	22 AWG
Wire Size-Min	30 AWG
Withdrawl Force-Min	0.3 N
