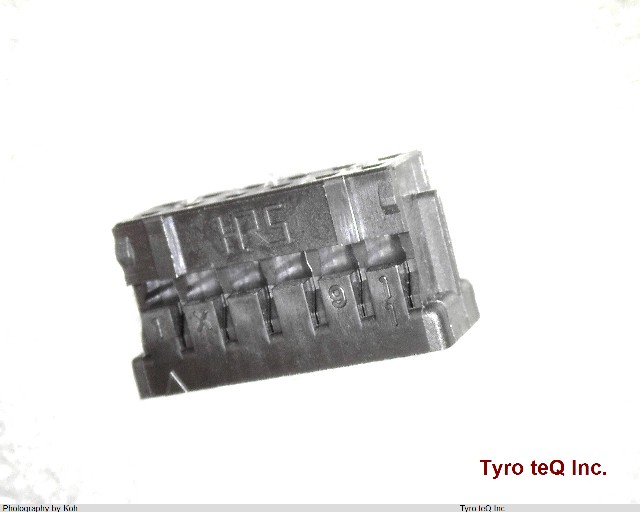

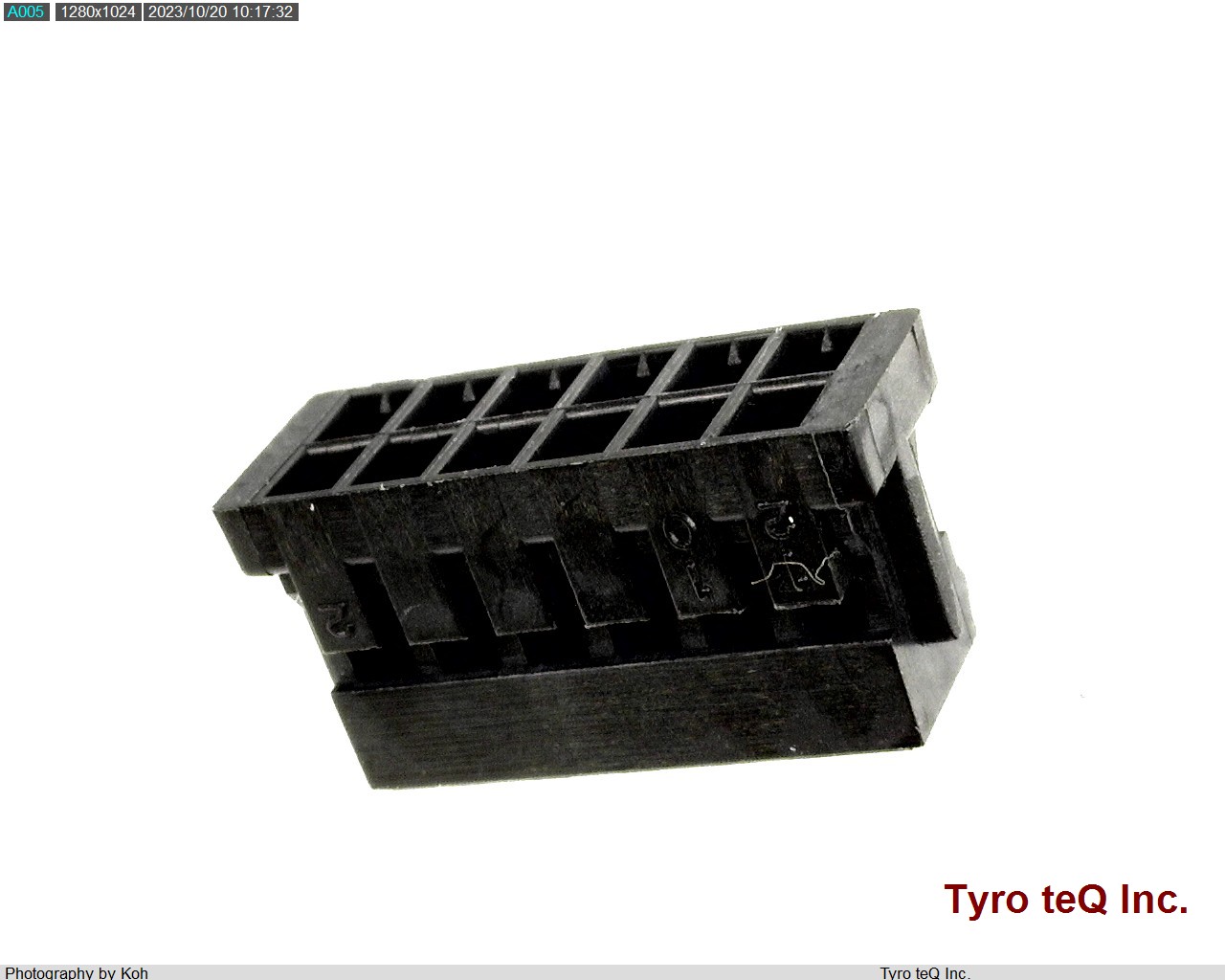

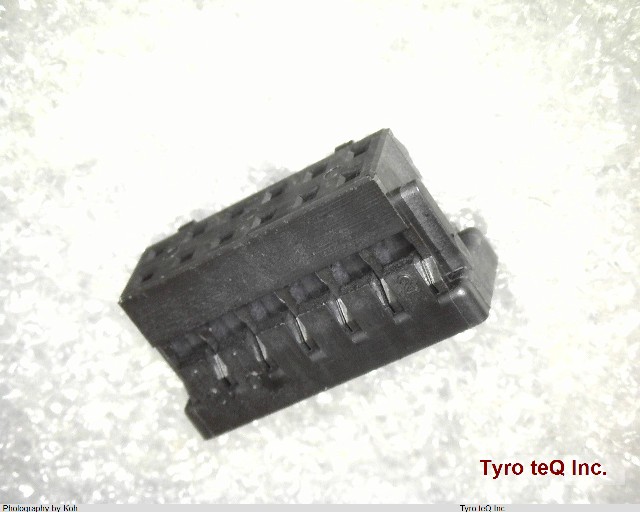

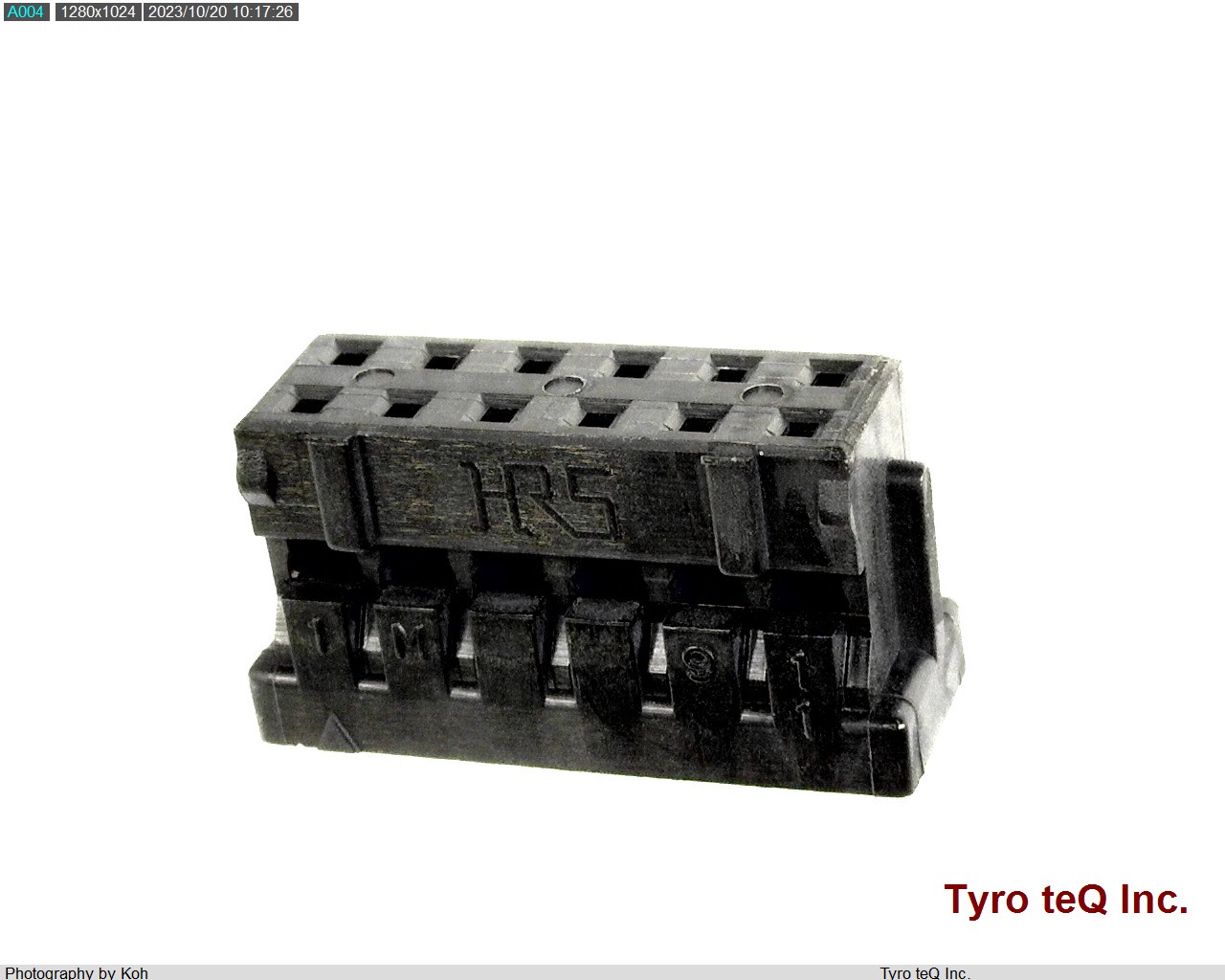

DF11-12DS-2C データシート

Name: DF11-12DS-2C
Brand: HIROSE
SKU: 140000673-0000-0000-0000

DF11-12DS-2C - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

DF11-12DS-2C の詳細情報

型番	DF11-12DS-2C
メーカー	HIROSE
データシート
Body Breadth	0.197 inch
Body Depth	0.287 inch
Body Length	0.551 inch
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Tin (Sn)
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	650VAC V
Durability	30 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	4.4 N
Insulation Diameter-Min	0.03 inch
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYAMIDE
JESD-609 Code	e3
MIL Conformance	NO
Manufacturer Series	DF11
Mating Contact Pitch	0.079 inch
Mating Contact Row Spacing	0.079 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	2 A
Reference Standard	CSA;CUL;UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	CRIMP
Total Number of Contacts	12
UL Flammability Code	94V-0
Wire Size-Max	22 AWG
Wire Size-Min	30 AWG
Withdrawl Force-Min	0.3 N
