DF11-10DEP-2C データシート

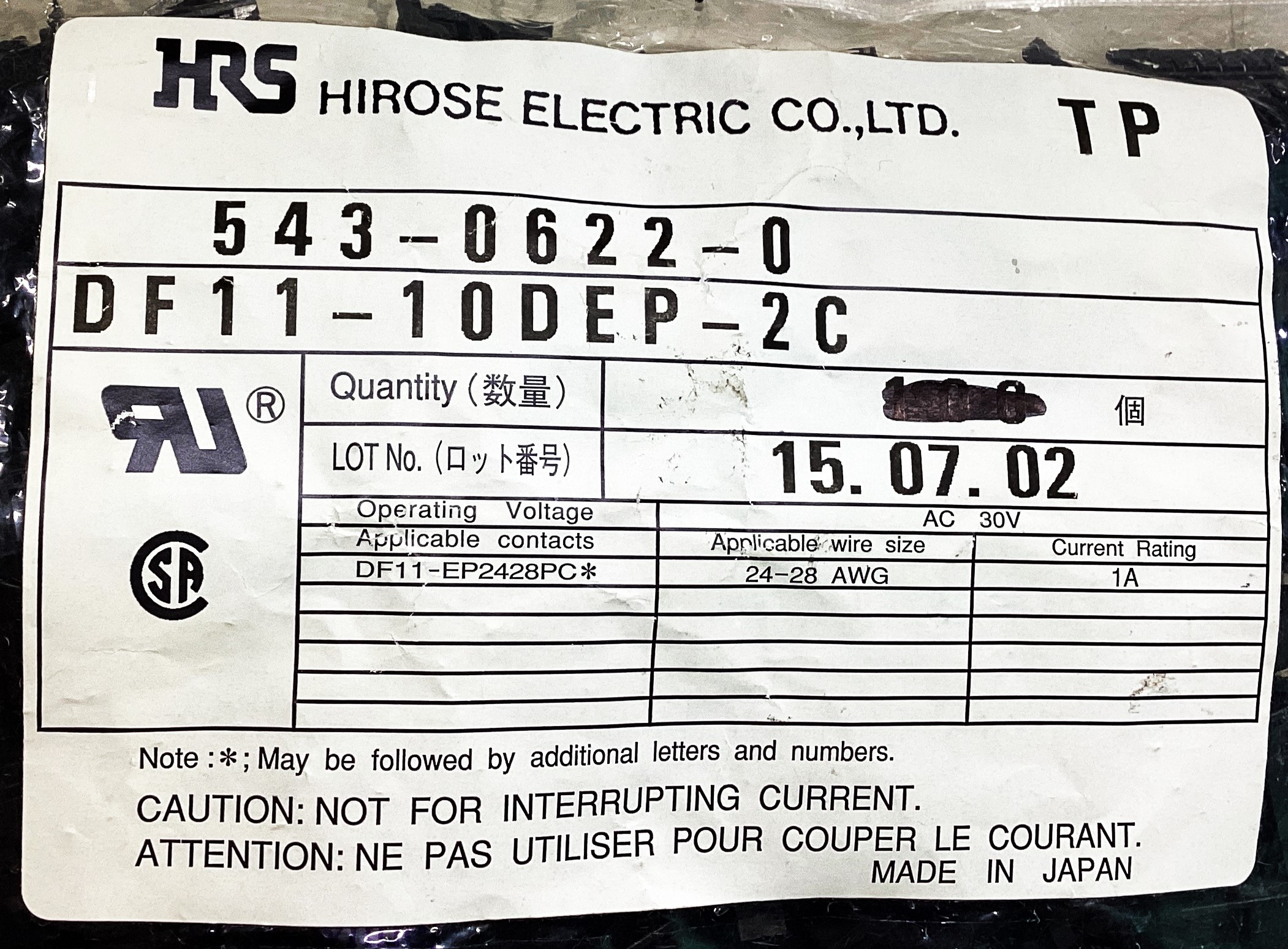

Name: DF11-10DEP-2C
Brand: HIROSE
SKU: 140078823-0000-0000-0000

DF11-10DEP-2C - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

DF11-10DEP-2C の詳細情報

型番	DF11-10DEP-2C
メーカー	HIROSE
データシート
Additional Feature	PANEL MOUNTABLE
Body Breadth	0.272 inch
Body Depth	0.512 inch
Body Length	0.669 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	NOT APPLICABLE
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	650VAC V
Durability	30 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	4.3924 N
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYAMIDE
MIL Conformance	NO
Mating Contact Pitch	0.079 inch
Mating Contact Row Spacing	0.079 inch
Mixed Contacts	NO
Mounting Option 1	LATCH
Mounting Option 2	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Option	WITH CABLE ASSEMBLY
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	2 A
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	CRIMP
Total Number of Contacts	10
UL Flammability Code	94V-0
Wire Size-Max	22 AWG
Wire Size-Min	30 AWG
Withdrawl Force-Min	.3058 N
