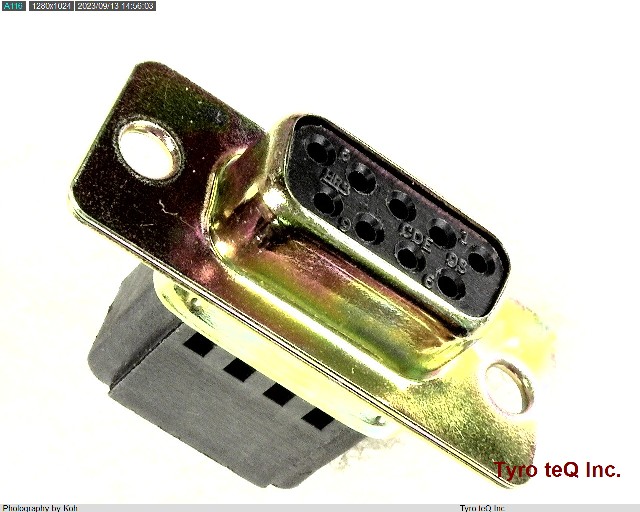

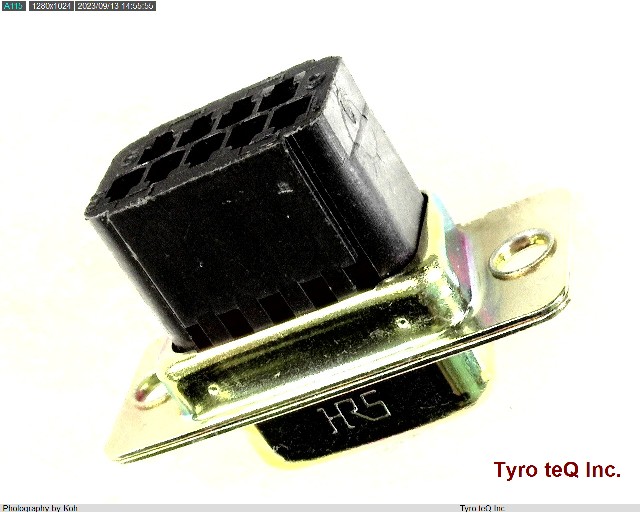

CDE-9S
データシート
1
-
- 個
２営業日以内に回答いたします
CDE-9S の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | CDE-9S |
|---|---|
| メーカー | HIROSE |
| データシート |  |
| Additional Feature | COMPATIBLE CONTACTS: CD-PC-111; CD-PC-121; CD-PC-211; CD-PC-221 |
| Body Breadth | 0.494 inch |
| Body Depth | 0.583 inch |
| Body Length | 1.213 inch |
| Body/Shell Style | RECEPTACLE |
| Connector Type | D SUBMINIATURE CONNECTOR |
| Contact Design | PREASSEM CONN |
| Contact Finish - Mating | NOT SPECIFIED |
| Contact Finish - Termination | Gold (Au) - with Nickel (Ni) barrier |
| Contact Gender | FEMALE |
| Contact Material | NOT SPECIFIED |
| Contact Pattern | STAGGERED |
| Contact Resistance | 25 mohm |
| Contact Style | RND PIN-SKT |
| DIN Conformance | NO |
| Dielectric Withstanding Voltage | 1250VAC V |
| Empty Shell | NO |
| Filter Feature | NO |
| IEC Conformance | NO |
| Insulation Resistance | 5000000000 ohm |
| Insulator Color | BLACK |
| Insulator Material | POLYBUTYLENE TEREPHTHALATE |
| JESD-609 Code | e4 |
| MIL Conformance | NO |
| Manufacturer Series | CD |
| Mating Contact Pitch | 0.108 inch |
| Mating Contact Row Spacing | 0.112 inch |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed Contacts | NO |
| Mounting Option 1 | HOLE .112-.124 |
| Mounting Type | CABLE |
| Number of Rows Loaded | 2 |
| Option | GENERAL PURPOSE |
| Rated Current (Signal) | 3 A |
| Reference Standard | UL |
| Reliability | COMMERCIAL |
| Shell Finish | DICHROMATE |
| Shell Material | STEEL |
| Shell Size | 1/E |
| Sub Category | D Type Connectors |
| Terminal Length | 0 inch |
| Termination Type | CRIMP |
| Total Number of Contacts | 9 |
| UL Flammability Code | 94V-0 |
| Wire Size-Max | 20 AWG |
| Wire Size-Min | 28 AWG |
