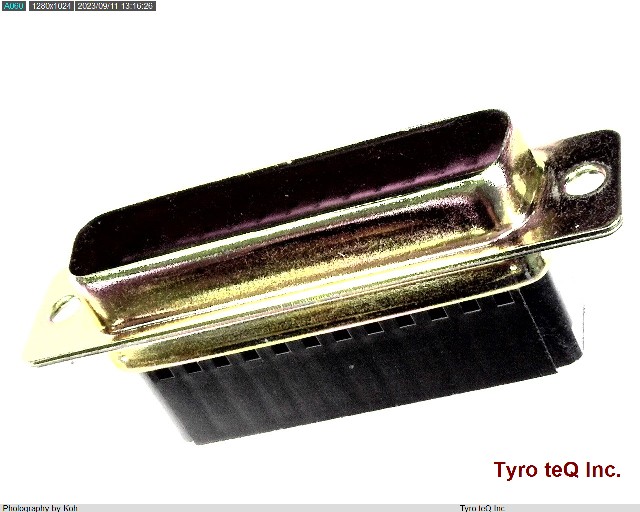

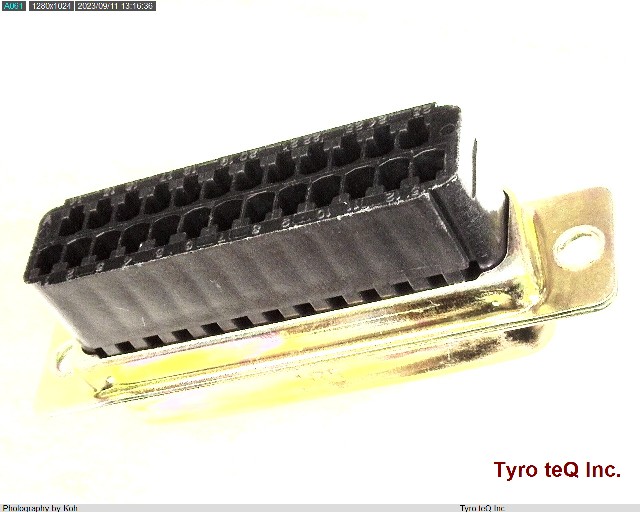

CDB-25S

Name: CDB-25S
Brand: HIROSE
SKU: 400067167-0000-0000-0000

CDB-25S - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

CDB-25S の詳細情報

型番	CDB-25S
メーカー	HIROSE
Additional Feature	COMPATIBLE CONTACTS: CD-PC-111; CD-PC-121; CD-PC-211; CD-PC-221
Body Breadth	0.494 inch
Body Depth	0.583 inch
Body Length	2.088 inch
Body/Shell Style	RECEPTACLE
Connector Type	D SUBMINIATURE CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Gold (Au) - with Nickel (Ni) barrier
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	STAGGERED
Contact Resistance	25 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1250VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	CD
Mating Contact Pitch	0.108 inch
Mating Contact Row Spacing	0.112 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	HOLE .112-.124
Mounting Type	CABLE
Number of Rows Loaded	2
Option	GENERAL PURPOSE
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	DICHROMATE
Shell Material	STEEL
Shell Size	3/B
Sub Category	D Type Connectors
Terminal Length	0 inch
Termination Type	CRIMP
Total Number of Contacts	25
UL Flammability Code	94V-0
Wire Size-Max	20 AWG
Wire Size-Min	28 AWG
