BNC-LR-PC-1(40) データシート

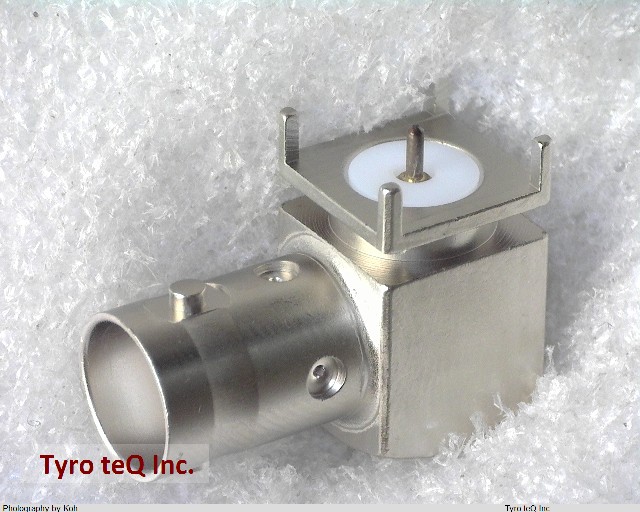

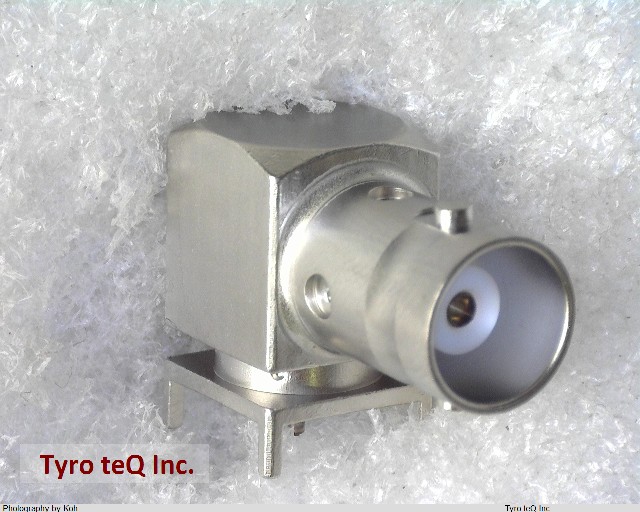

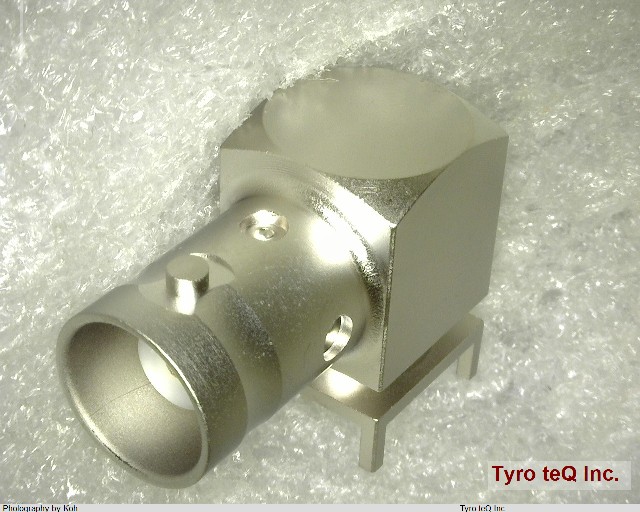

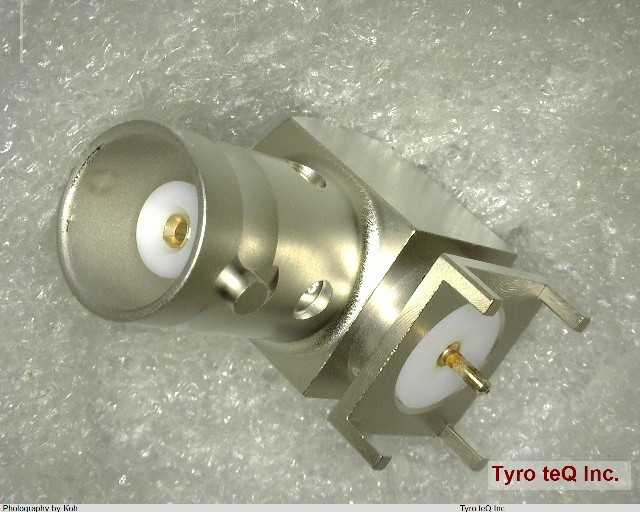

Name: BNC-LR-PC-1(40)
Brand: HIROSE
SKU: 120199940-0000-0000-0000

BNC-LR-PC-1(40) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

BNC-LR-PC-1(40) の詳細情報

型番	BNC-LR-PC-1(40)
メーカー	HIROSE
データシート
Additional Feature	VSWR MAX AT 2GHZ, CONTACT GENDER REFERRED FROM MFR WEBSITE
Body Breadth	0.669 inch
Body Depth	0.97 inch
Body Length	0.472 inch
Body/Shell Style	RECEPTACLE
Characteristic Impedance	50 ohm
Connector Type	RF BNC CONNECTOR
Contact Finish - Mating	SILVER
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Resistance	3 mohm
Contact Style	COAX
Coupling Type	BAYONET
DIN Conformance	NO
Dielectric Withstanding Voltage	2100VAC V
Durability	5000 Cycles
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	5000000000 ohm
Insulator Material	TETRAFLUORIDE
MIL Conformance	NO
Manufacturer Series	BNC-LR-PC-1(40)
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number of Ports	1
Operating Frequency-Max	4 GHz
Option	GENERAL PURPOSE
Panel Mount	NO
Shell Material	BRASS
Sub Category	RF BNC Connectors
Terminal Length	0.118 inch
Termination Type	SOLDER
Total Number of Contacts	1
VSWR	1.2
