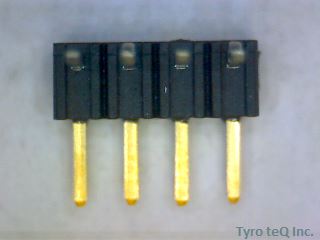

A4B-4PA-2DS(71) データシート

Name: A4B-4PA-2DS(71)
Brand: HIROSE
SKU: 110240234-0000-0000-0000

A4B-4PA-2DS(71) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

A4B-4PA-2DS(71) の詳細情報

型番	A4B-4PA-2DS(71)
メーカー	HIROSE
データシート
Body Breadth	0.079 inch
Body Depth	0.118 inch
Body Length	0.315 inch
Connector Type	BOARD CONNECTOR
Contact Gender	MALE
Contact Pattern	RECTANGULAR
Contact Resistance	15 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	650VAC V
Durability	100 Cycles
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYAMIDE
Manufacturer Series	A4
Mating Contact Pitch	0.079 inch
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.102 inch
Terminal Pitch	2.0066 mm
Termination Type	SOLDER
Total Number of Contacts	4
