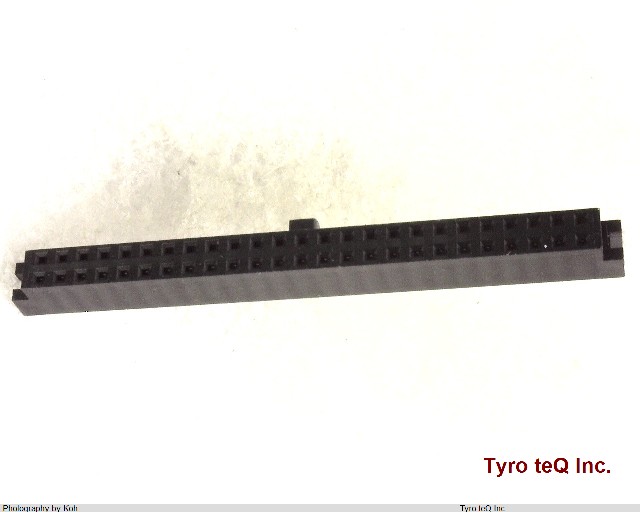

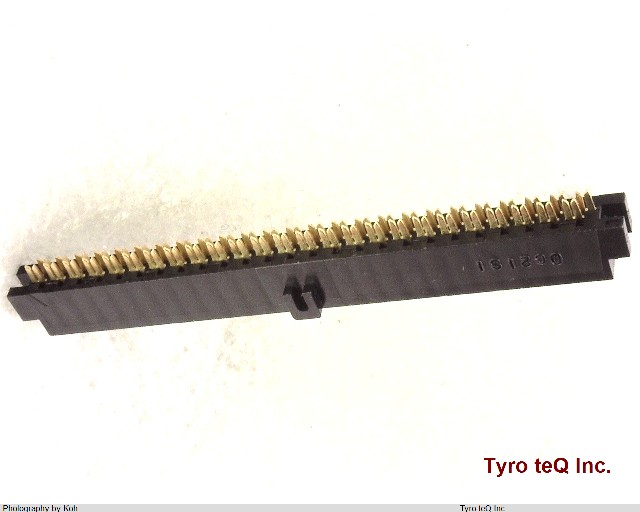

A3E-50D-2R データシート

Name: A3E-50D-2R
Brand: HIROSE
SKU: 110098973-0000-0000-0000

A3E-50D-2R - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

A3E-50D-2R の詳細情報

型番	A3E-50D-2R
メーカー	HIROSE
データシート
Additional Feature	POLARIZED
Body Breadth	0.157 inch
Body Depth	0.217 inch
Body Length	2.165 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	40 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	300VAC V
Durability	100 Cycles
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
MIL Conformance	NO
Mating Contact Pitch	0.079 inch
Mating Contact Row Spacing	0.079 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	IDC
Total Number of Contacts	50
UL Flammability Code	94V-0
