A3B-8PA-2DSA(71) データシート

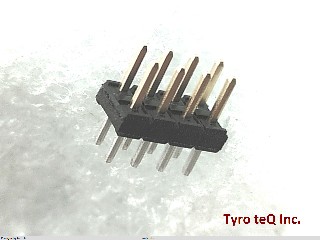

Name: A3B-8PA-2DSA(71)
Brand: HIROSE
SKU: 110235752-0000-0000-0000

A3B-8PA-2DSA(71) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

A3B-8PA-2DSA(71) の詳細情報

型番	A3B-8PA-2DSA(71)
メーカー	HIROSE
データシート
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	AU
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	15 mohm
Contact Style	SQ PIN-SKT
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYAMIDE
Mating Contact Pitch	0.079 inch
Mating Contact Row Spacing	0.079 inch
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.0066 mm
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.102 inch
Terminal Pitch	2.0066 mm
Termination Type	SOLDER
Total Number of Contacts	8
