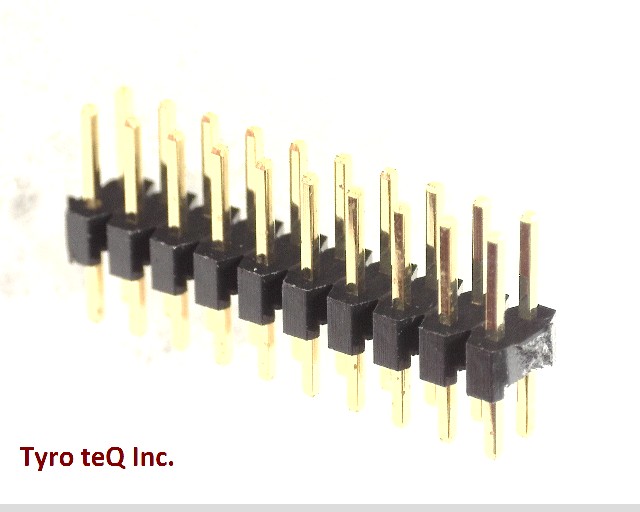

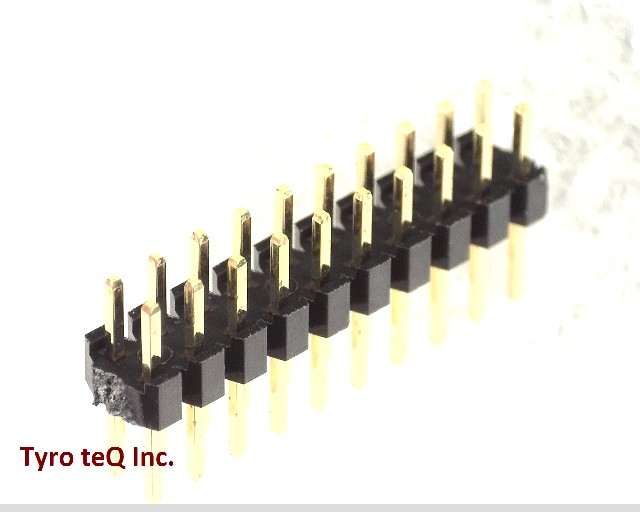

A3B-20PA-2DSA データシート

Name: A3B-20PA-2DSA
Brand: HIROSE
SKU: 110193928-0000-0000-0000

A3B-20PA-2DSA - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

A3B-20PA-2DSA の詳細情報

型番	A3B-20PA-2DSA
メーカー	HIROSE
データシート
Additional Feature	HIGH DENSITY
Body Breadth	0.157 inch
Body Depth	0.071 inch
Body Length	0.787 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	GOLD
Contact Finish - Termination	GOLD
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	15 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	650VAC V
Durability	100 Cycles
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYAMIDE
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	A3
Mating Contact Pitch	0.079 inch
Mating Contact Row Spacing	0.079 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.0066 mm
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.102 inch
Terminal Pitch	2 mm
Termination Type	SOLDER
Total Number of Contacts	20
UL Flammability Code	94V-0
