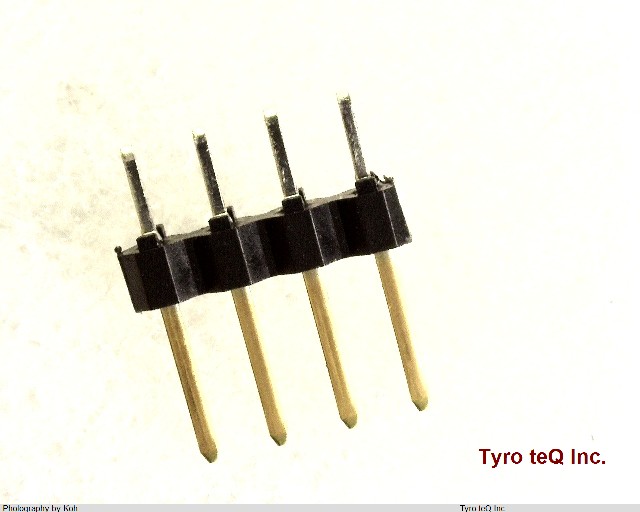

A2-4PA-2.54DSA(71) データシート

Name: A2-4PA-2.54DSA(71)
Brand: HIROSE
SKU: 110235673-0000-0000-0000

A2-4PA-2.54DSA(71) - HIROSE の商品詳細ページです。

178時間34分後以内に見積もり依頼を頂ければ、
05月08日(水) 9:00 までに見積もり回答いたします。

検討リストに追加する

A2-4PA-2.54DSA(71) の詳細情報

型番	A2-4PA-2.54DSA(71)
メーカー	HIROSE
データシート
Additional Feature	POLARIZED
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Tin (Sn)
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	15 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.1 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	3 A
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.118 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	4
UL Flammability Code	94V-0
