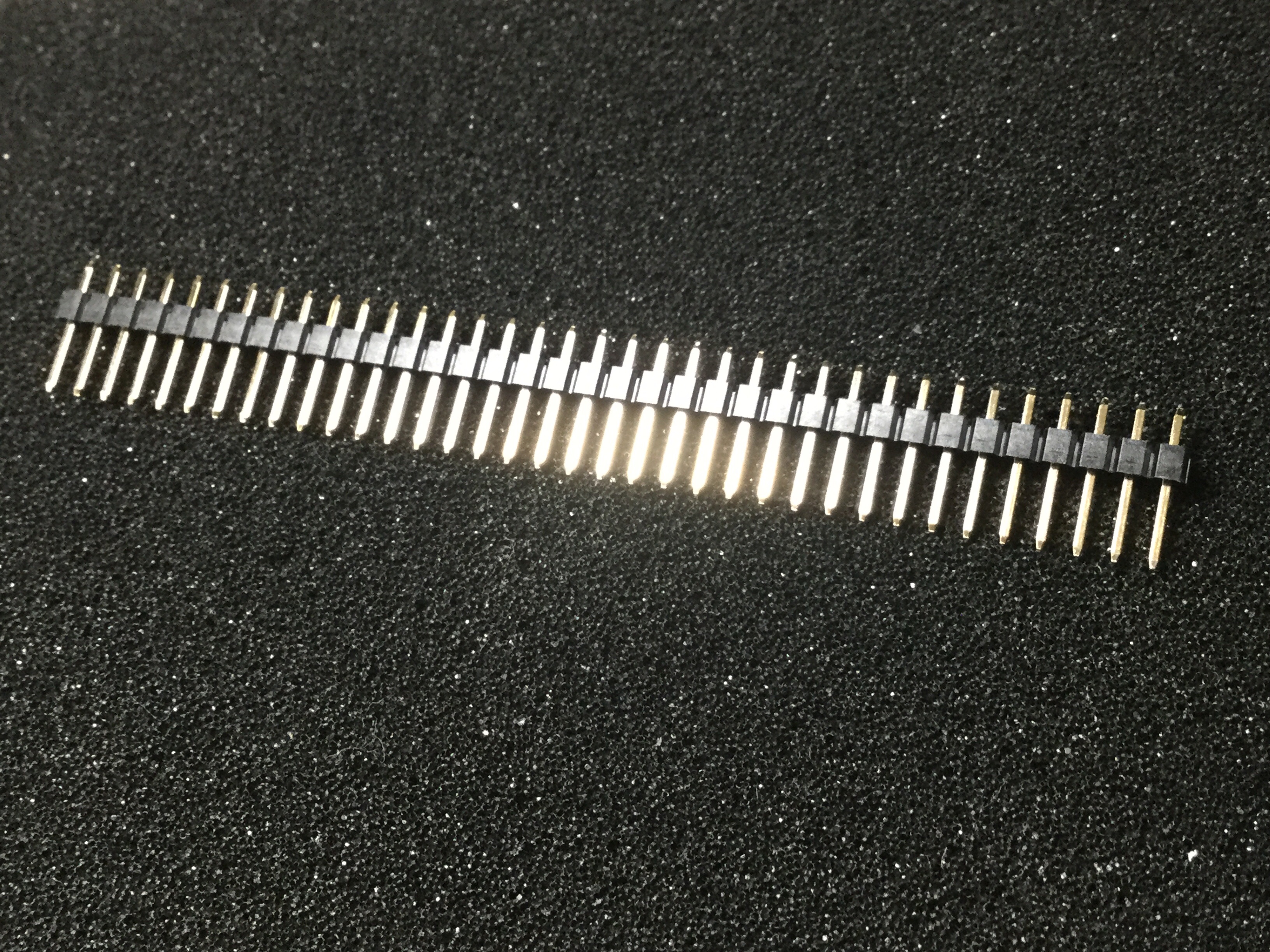

M20-9993645 Harwin

M20-9993645

M20-9993645 - HARWIN の商品詳細ページです。

1

42時間41分後 以内に見積もり依頼を頂ければ、
04月23日(火) 9:00 までに見積もり回答いたします。

  • 個
この商品のお問い合わせ

M20-9993645 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番M20-9993645
メーカーHARWIN
Additional Feature ROHS COMPLIANT
Body Breadth 0.1 inch
Body Depth 0.1 inch
Body Length 3.6 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Finish - Termination GOLD
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 25 mohm
DIN Conformance NO
Dielectric Withstanding Voltage 750VAC V
Durability 300 Cycles
Filter Feature NO
IEC Conformance NO
Insulation Resistance 1000000000 ohm
Insulator Color BLACK
Insulator Material POLYAMIDE
JESD-609 Code e4
MIL Conformance NO
Mating Contact Pitch 0.1 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Rows Loaded 1
Operating Temperature-Max 105 Cel
Operating Temperature-Min -40 Cel
Option GENERAL PURPOSE
Rated Current (Signal) 3 A
Reference Standard UL
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.118 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 36
UL Flammability Code 94V-0
会社名称Harwin Plc
設立1952
所在地Blk 5014 Ang Mo Kio Ave 5 #06-01 TechPlace II Singapore 569881
URLhttp://www.harwinasia.com/
