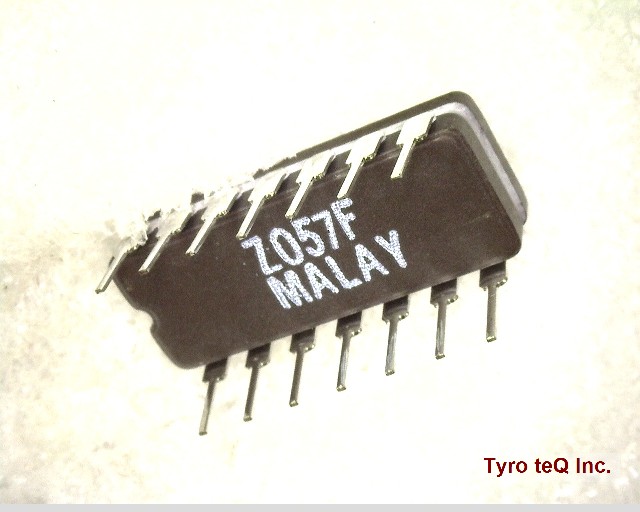

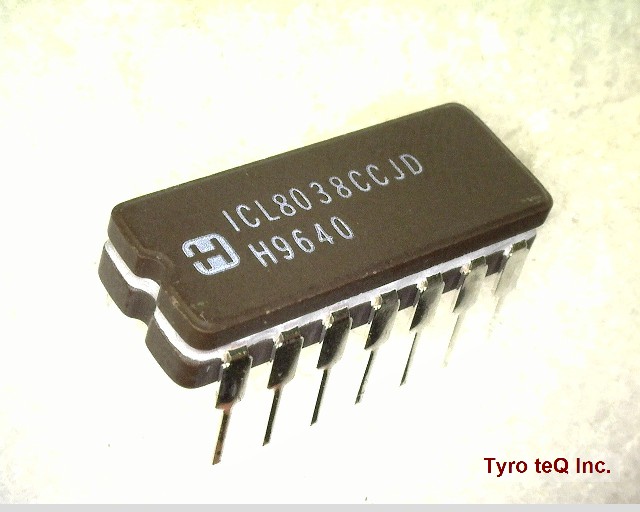

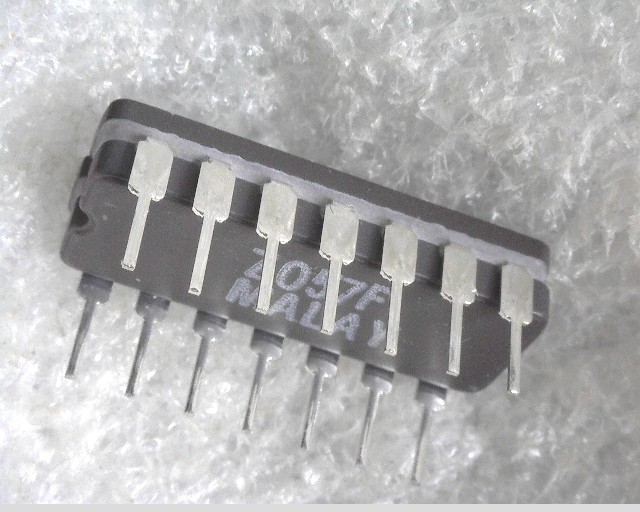

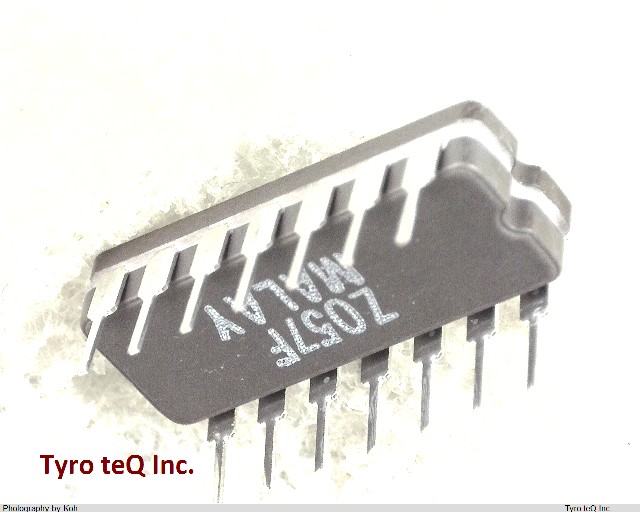

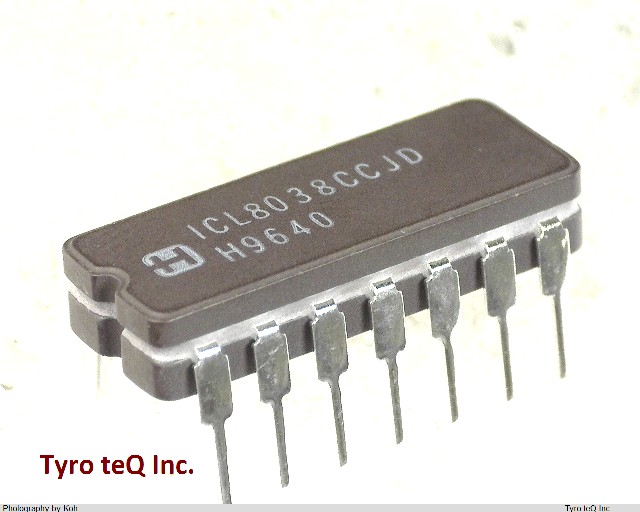

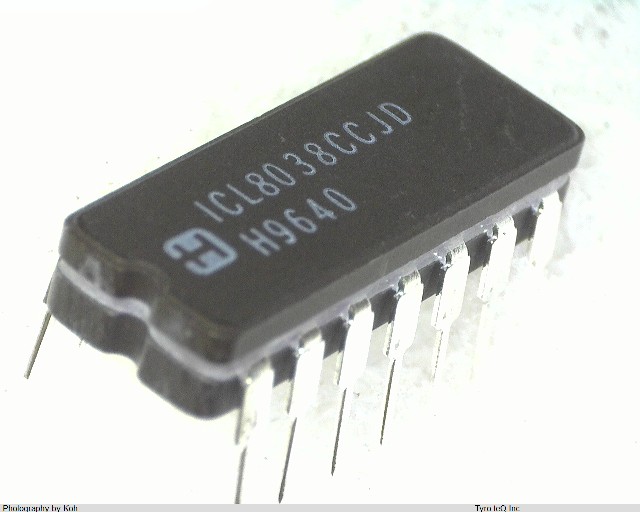

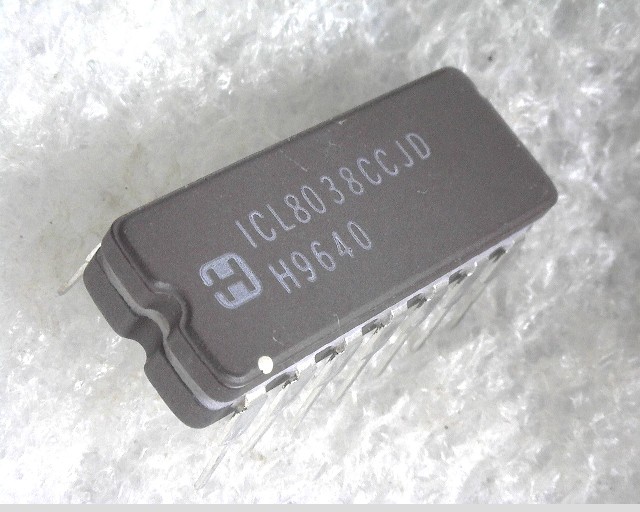

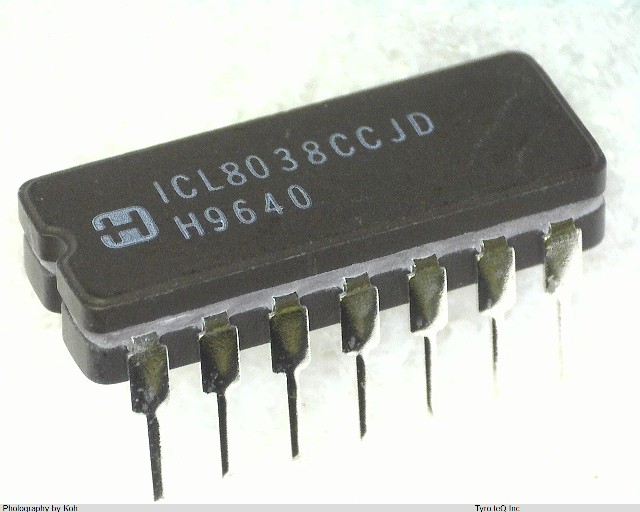

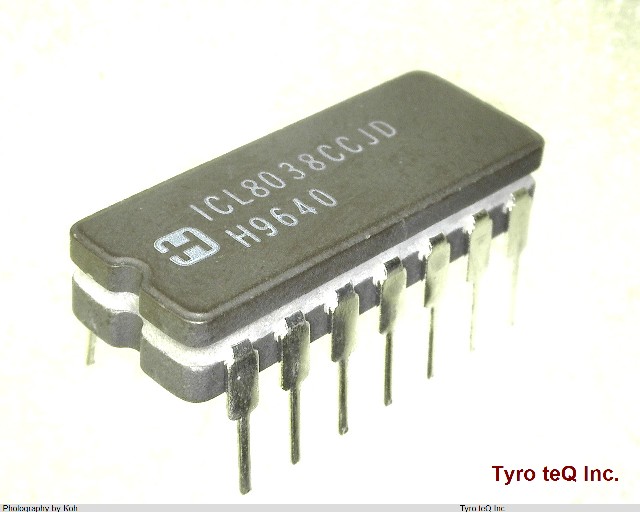

ICL8038CCJD

Name: ICL8038CCJD
Brand: HARRIS
SKU: 190105836-0000-0000-0000

ICL8038CCJD - HARRIS の商品詳細ページです。

29時間31分後以内に見積もり依頼を頂ければ、
05月21日(火) 9:00 までに見積もり回答いたします。

検討リストに追加する

ICL8038CCJD の詳細情報

型番	ICL8038CCJD
メーカー	HARRIS
Additional Feature	ALSO OPEARTE AT 20V NOM(SINGLE SUPPLY); LG-MAX
Analog IC - Other Type	SQUARE; TRIANGULAR; SINE; SAWTOOTH; PULSE
JESD-30 Code	R-CDIP-T14
JESD-609 Code	e0
Length	19.94 mm
Neg Supply Voltage-Max (Vsup)	-15 V
Neg Supply Voltage-Min (Vsup)	-5 V
Neg Supply Voltage-Nom (Vsup)	-10 V
Number of Functions	1
Number of Terminals	1
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Frequency-Max	0.1 GHz
Package Body Material	CERAMIC
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	+-5,+-15 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Analog Waveform Generation Functions
Supply Current-Max (Isup)	20 mA
Supply Voltage-Max (Vsup)	15 V
Supply Voltage-Min (Vsup)	5 V
Supply Voltage-Nom (Vsup)	10 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
