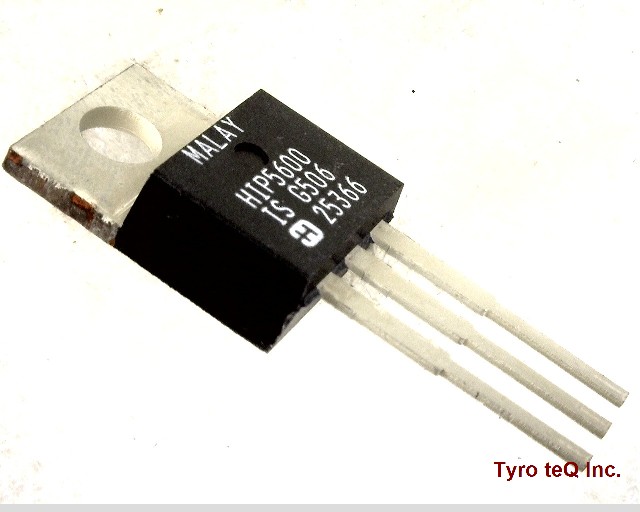

HIP5600IS
1
-
- 個
２営業日以内に回答いたします
HIP5600IS の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | HIP5600IS |
|---|---|
| メーカー | HARRIS |
| Adjustability | ADJUSTABLE |
| JESD-30 Code | R-PSFM-T3 |
| JESD-609 Code | e0 |
| Line Regulation-Max (%/V) | 0.002 |
| Load Regulation-Max(%) | 4.5 % |
| Number of Functions | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 3 |
| Operating Temperature, TJ-Max | 150 Cel |
| Operating Temperature-Max | 100 Cel |
| Operating Temperature-Min | -40 Cel |
| Output Current1-Max | 0.01 A |
| Output Voltage1-Max | 350 V |
| Output Voltage1-Min | 1.2 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TO-220 |
| Package Equivalence Code | SIP3,.1TB |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT Meter |
| Qualification Status | Not Qualified |
| Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR |
| Sub Category | Other Regulators |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 2.54 mm |
| Terminal Position | SINGLE |
| 会社名称 | Harris Corporation |
|---|---|
| 資本金 | 1890s |
| 所在地 | 1025 West NASA Boulevard Melbourne, Florida 32919-0001 USA |
| URL | http://harris.com |
