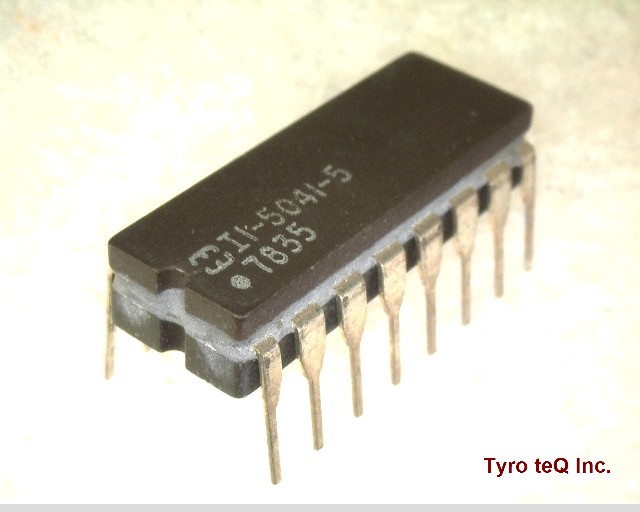

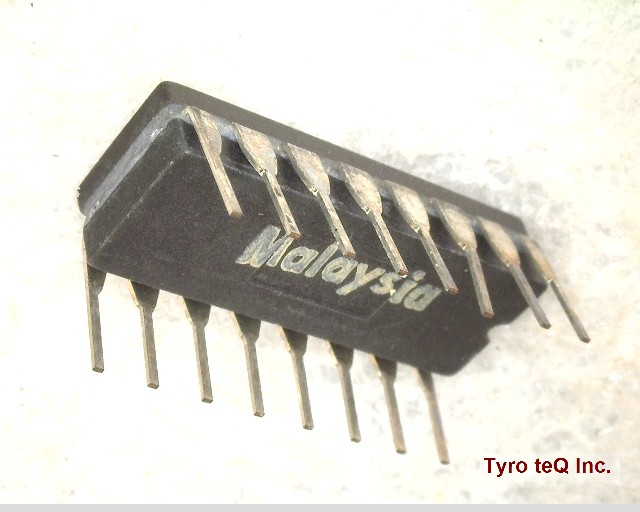

HI1-5041-5

Name: HI1-5041-5
Brand: HARRIS
SKU: 400067659-0000-0000-0000

HI1-5041-5 - HARRIS の商品詳細ページです。

２営業日以内に回答いたします

HI1-5041-5 の詳細情報

型番	HI1-5041-5
メーカー	HARRIS
Analog IC - Other Type	SPST
JESD-30 Code	R-GDIP-T16
JESD-609 Code	e0
Neg Supply Voltage-Nom (Vsup)	-15 V
Normal Position	NO V
Number of Channels	1
Number of Functions	2
Number of Terminals	16
Off-state Isolation-Nom	80 dB
On-state Resistance Match-Nom	2 ohm
On-state Resistance-Max (Ron)	75 ohm
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output	SEPARATE OUTPUT V
Package Body Material	CERAMIC
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5,+-15 V
Qualification Status	Not Qualified
Sub Category	Multiplexer or Switches
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Switch-off Time-Max	500 ns
Switch-on Time-Max	500 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
