HI1-0200-5 Harris

HI1-0200-5 - HARRIS の商品詳細ページです。

1

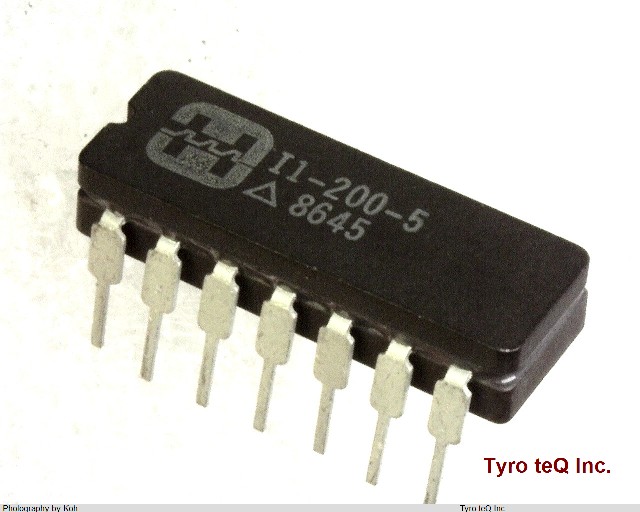

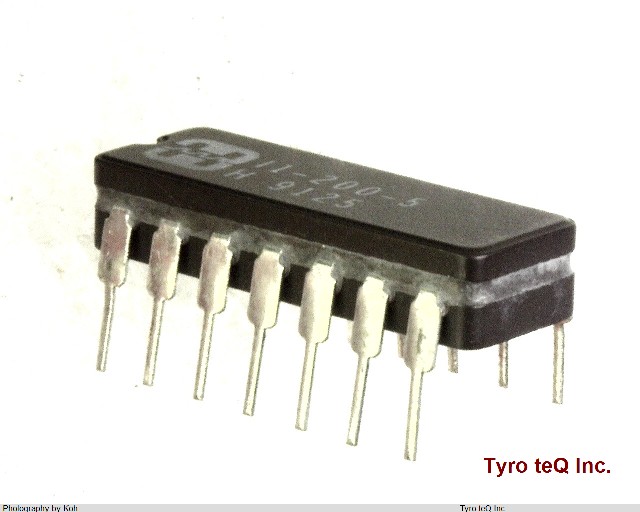

HI1-0200-5
  • HI1-0200-5
  • HI1-0200-5
  • HI1-0200-5
  • HI1-0200-5
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

HI1-0200-5 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番HI1-0200-5
メーカーHARRIS
Analog IC - Other Type SPST
JESD-30 Code R-GDIP-T14
JESD-609 Code e0
Length 9.585 mm
Neg Supply Voltage-Nom (Vsup) -15 V
Normal Position NC V
Number of Channels 1
Number of Functions 2
Number of Terminals 14
Off-state Isolation-Nom 70 dB
On-state Resistance-Max (Ron) 70 ohm
Operating Temperature-Max 75 Cel
Operating Temperature-Min 0 Cel
Output SEPARATE OUTPUT V
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Power Supplies +-15 V
Qualification Status Not Qualified
Seated Height-Max 5.33 mm
Sub Category Multiplexer or Switches
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Switching BREAK-BEFORE-MAKE V
Technology CMOS
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
会社名称Harris Corporation
資本金1890s
所在地1025 West NASA Boulevard Melbourne, Florida 32919-0001 USA
URLhttp://harris.com
