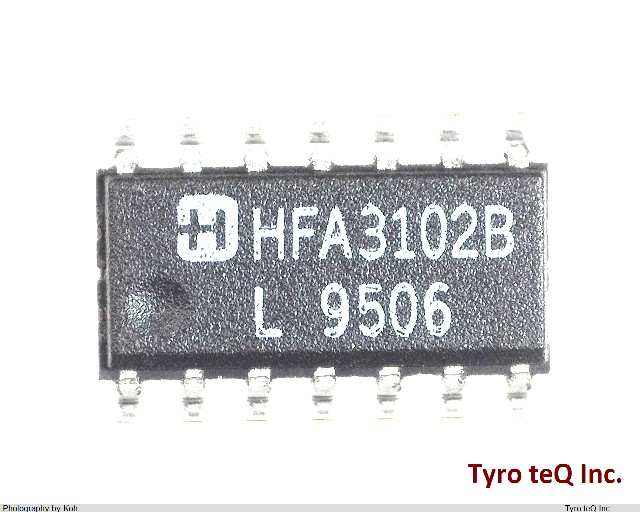

HFA3102B
1
-
- 個
２営業日以内に回答いたします
HFA3102B の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | HFA3102B |
|---|---|
| メーカー | HARRIS |
| Additional Feature | AGC CIRCUIT |
| Collector Current-Max (IC) | 0.03 A |
| Collector-base Capacitance-Max | 300 pF |
| Collector-emitter Voltage-Max | 8 V |
| Configuration | COMPLEX |
| DC Current Gain-Min (hFE) | 40 |
| Highest Frequency Band | C BAND |
| JEDEC-95 Code | MS-012AB |
| JESD-30 Code | R-PDSO-G14 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 6 |
| Number of Terminals | 14 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity/Channel Type | NPN |
| Qualification Status | Not Qualified |
| Sub Category | Other Transistors |
| Surface Mount | YES |
| Terminal Finish | MATTE TIN |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Transistor Application | AMPLIFIER |
| Transistor Element Material | SILICON |
| Transition Frequency-Nom (fT) | 10000 MHz |
| 会社名称 | Harris Corporation |
|---|---|
| 資本金 | 1890s |
| 所在地 | 1025 West NASA Boulevard Melbourne, Florida 32919-0001 USA |
| URL | http://harris.com |
