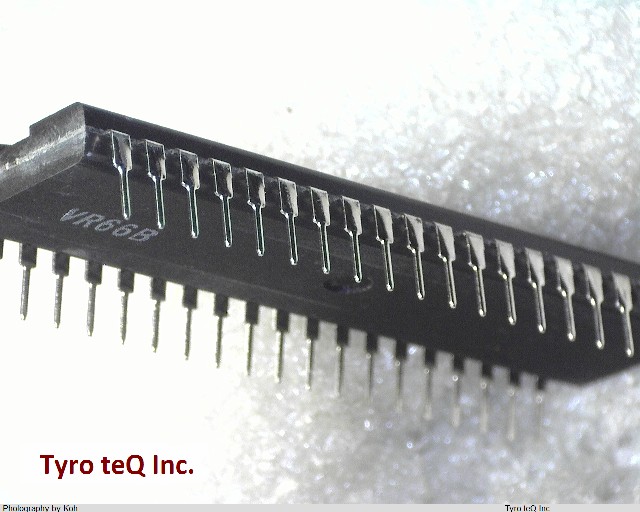

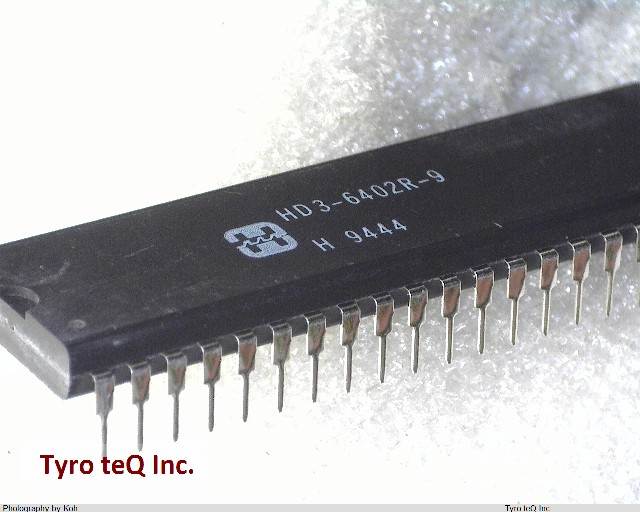

HD3-6402R-9

Name: HD3-6402R-9
Brand: HARRIS
SKU: 180002283-0000-0000-0000

HD3-6402R-9 - HARRIS の商品詳細ページです。

２営業日以内に回答いたします

HD3-6402R-9 の詳細情報

型番	HD3-6402R-9
メーカー	HARRIS
Additional Feature	ICC_MAX AT FCLK = 2MHZ
Address Bus Width	2
Boundary Scan	NO
Bus Compatibility	UART
Clock Frequency-Max	2 MHz
Communication Protocol	ASYNC, BIT
Data Encoding/Decoding Method	NRZ
Data Transfer Rate-Max	0.0152587890625 MBps
External Data Bus Width	8
JESD-30 Code	R-PDIP-T40
JESD-609 Code	e0
Length	51.75 mm
Low Power Mode	YES
Number of DMA Channels	0
Number of I/O Lines	0
Number of Serial I/Os	1
Number of Terminals	40
On Chip Data RAM Width	0
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (words)	0
Seated Height-Max	6.35 mm
Sub Category	Serial IO/Communication Controllers
Supply Current-Max	2 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	15.24 mm
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
