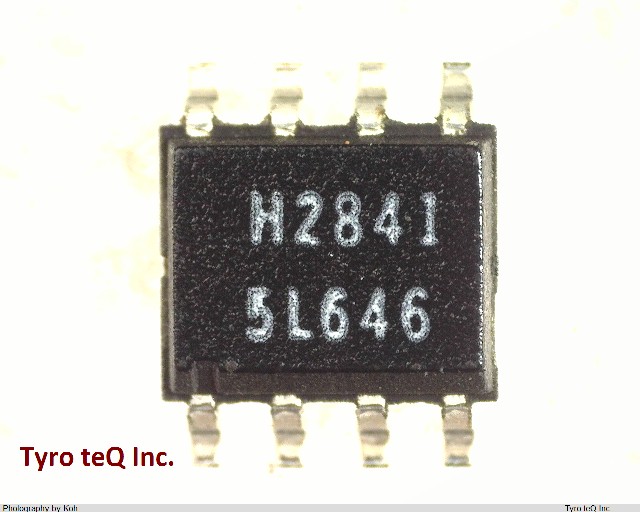

HA9P2841-5 Harris

HA9P2841-5 - HARRIS の商品詳細ページです。

1
HA9P2841-5
  • HA9P2841-5
  • HA9P2841-5
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

HA9P2841-5 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番HA9P2841-5
メーカーHARRIS
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 15 uA
Bias Current-Max (IIB) @25C 10 uA
Common-mode Reject Ratio-Min 80 dB
Common-mode Reject Ratio-Nom 95 dB
Frequency Compensation YES
Input Offset Current-Max (IIO) 1 uA
Input Offset Voltage-Max 6000 uV
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Length 4.9 mm
Low-Bias NO
Low-Offset NO
Mfr Name HARRIS SEMICONDUCTOR
Mfr P/N HA9P2841-5
Micropower NO
Neg Supply Voltage Limit-Max -17.5 V
Neg Supply Voltage-Nom (Vsup) -15 V
New Category Operational Amplifiers
New Part Type AMPLIFIERS
Number of Functions 1
Number of Terminals 8
Old Category Audio/Video Amplifiers
Old Part Type CONSUMER_ICS
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8(UNSPEC)
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Part Objectid 1418780761
Power NO
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Slew Rate-Min 200 V/us
Slew Rate-Nom 240 V/us
Sub Category Operational Amplifier
Supply Current-Max 11 mA
Supply Voltage Limit-Max 17.5 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
会社名称Harris Corporation
資本金1890s
所在地1025 West NASA Boulevard Melbourne, Florida 32919-0001 USA
URLhttp://harris.com

HA9P2841-5のレビュー

HA9P2841-5 のご注文について
