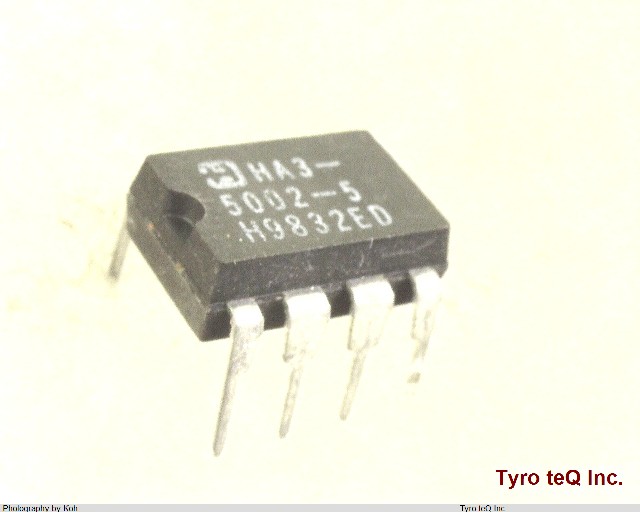

HA3-5002-5

Name: HA3-5002-5
Brand: HARRIS
SKU: 180159290-0000-0000-0000

HA3-5002-5 - HARRIS の商品詳細ページです。

24時間43分後以内に見積もり依頼を頂ければ、
06月04日(火) 9:00 までに見積もり回答いたします。

検討リストに追加する

HA3-5002-5 の詳細情報

型番	HA3-5002-5
メーカー	HARRIS
Amplifier Type	BUFFER
Average Bias Current-Max (IIB)	10 uA
Bandwidth (3dB)-Nom	110 MHz
Bias Current-Max (IIB) @25C	7 uA
Input Offset Voltage-Max	30000 uV
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.585 mm
Neg Supply Voltage Limit-Max	-22 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-12/+-15 V
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Slew Rate-Min	1 V/us
Slew Rate-Nom	1300 V/us
Sub Category	Buffer Amplifier
Supply Current-Max	10 mA
Supply Voltage Limit-Max	22 V
Supply Voltage-Nom (Vsup)	12 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Width	7.62 mm
