HA1-5195-5 Harris

HA1-5195-5 - HARRIS の商品詳細ページです。

1

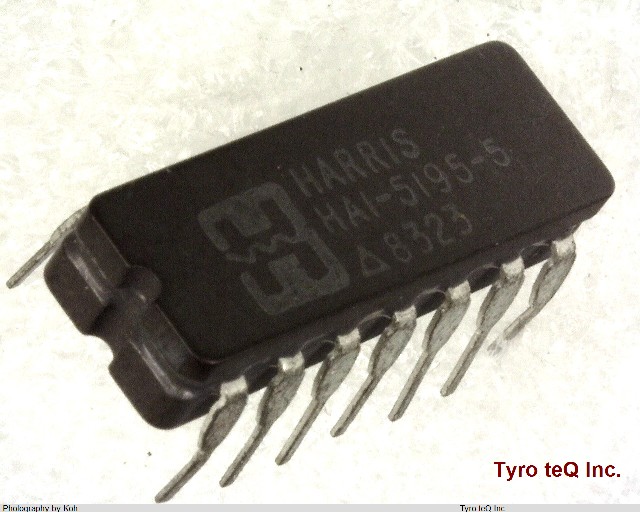

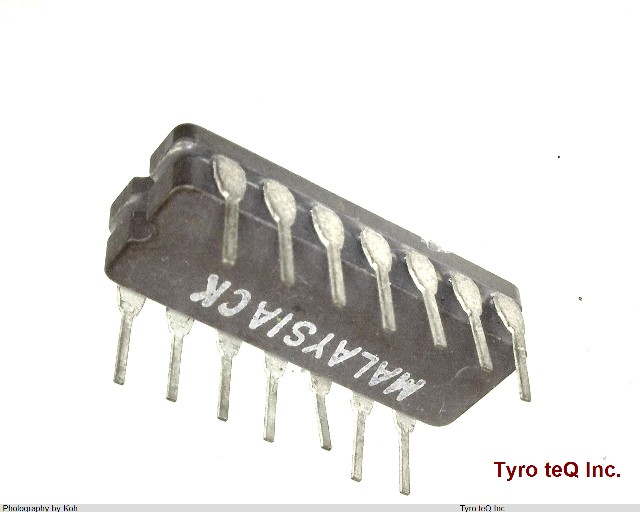

HA1-5195-5
  • HA1-5195-5
  • HA1-5195-5
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

HA1-5195-5 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番HA1-5195-5
メーカーHARRIS
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 20 uA
Bias Current-Max (IIB) @25C 15 uA
Common-mode Reject Ratio-Min 74 dB
Common-mode Reject Ratio-Nom 95 dB
Frequency Compensation YES (AVCL>=5)
Input Offset Voltage-Max 10000 uV
JESD-30 Code R-GDIP-T14
JESD-609 Code e0
Low-Offset NO
Neg Supply Voltage Limit-Max -17.5 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 1
Number of Terminals 14
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Package Body Material CERAMIC
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Power Supplies +-15 V
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Slew Rate-Min 160 V/us
Slew Rate-Nom 200 V/us
Sub Category Operational Amplifier
Supply Current-Max 28 mA
Supply Voltage Limit-Max 17.5 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Unity Gain BW-Nom 150000 kHz
Voltage Gain-Min 5000
Wideband YES
Width 7.62 mm
会社名称Harris Corporation
資本金1890s
所在地1025 West NASA Boulevard Melbourne, Florida 32919-0001 USA
URLhttp://harris.com
