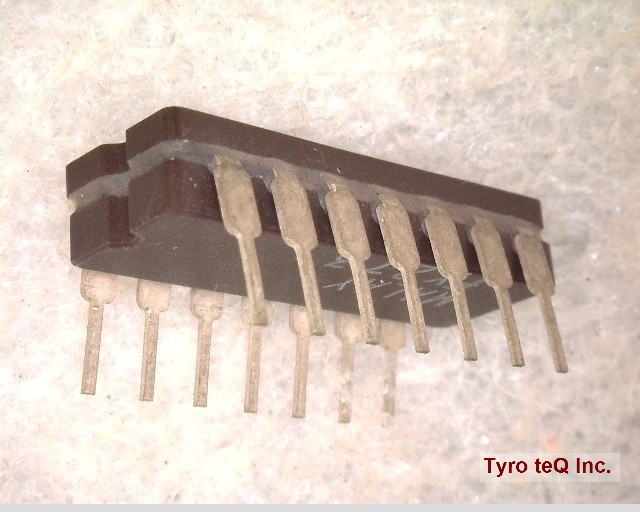

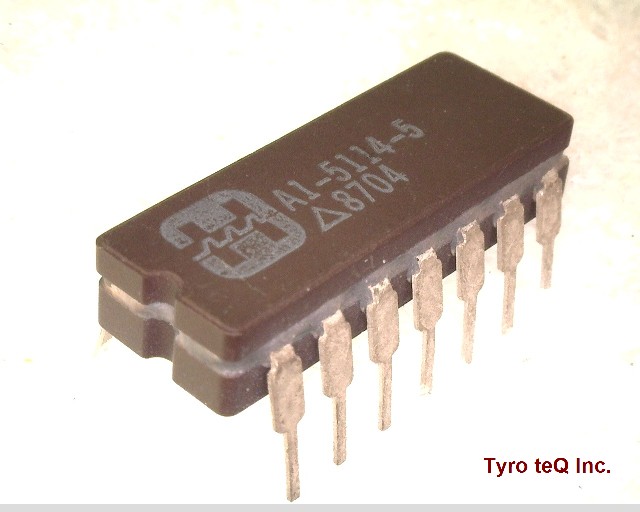

HA1-5114-5

Name: HA1-5114-5
Brand: HARRIS
SKU: 400067658-0000-0000-0000

HA1-5114-5 - HARRIS の商品詳細ページです。

２営業日以内に回答いたします

HA1-5114-5 の詳細情報

型番	HA1-5114-5
メーカー	HARRIS
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.325 uA
Bias Current-Max (IIB) @25C	0.2 uA
Common-mode Reject Ratio-Min	86 dB
Common-mode Reject Ratio-Nom	95 dB
Frequency Compensation	YES (AVCL>=10)
Input Offset Voltage-Max	3000 uV
JESD-30 Code	R-GDIP-T14
JESD-609 Code	e0
Low-Offset	NO
Neg Supply Voltage Limit-Max	-20 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	4
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	CERAMIC
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	+-15 V
Qualification Status	Not Qualified
Slew Rate-Min	12 V/us
Slew Rate-Nom	20 V/us
Sub Category	Operational Amplifier
Supply Current-Max	6.5 mA
Supply Voltage Limit-Max	20 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	60000 kHz
Voltage Gain-Min	100000
