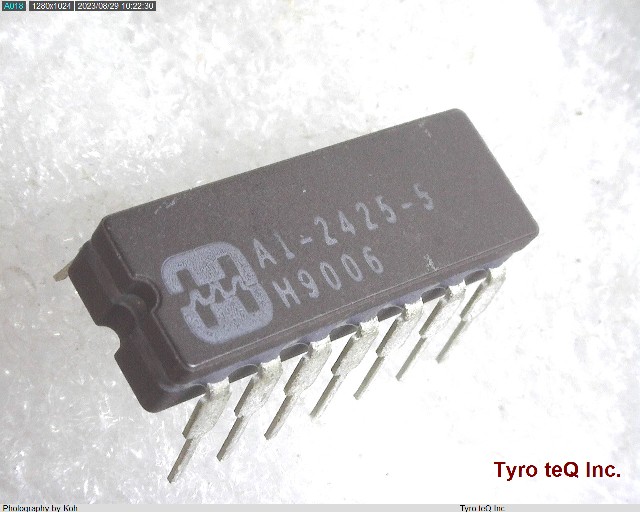

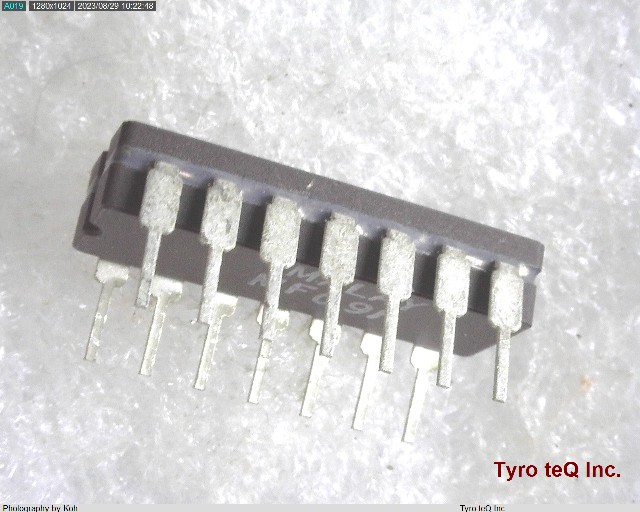

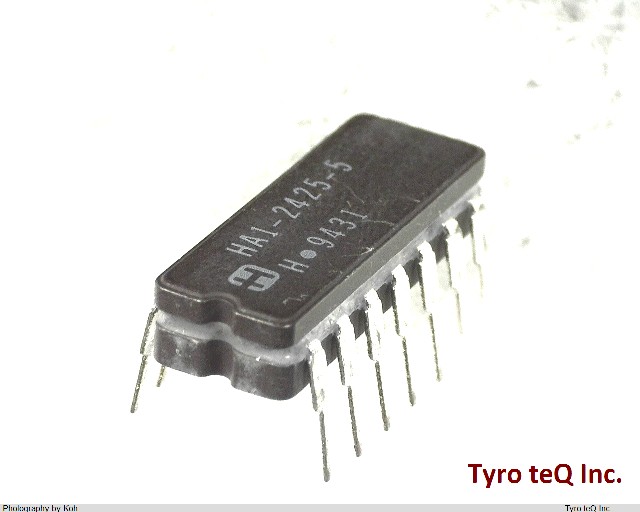

HA1-2425-5

Name: HA1-2425-5
Brand: HARRIS
SKU: 180001497-0000-0000-0000

HA1-2425-5 - HARRIS の商品詳細ページです。

24時間3分後以内に見積もり依頼を頂ければ、
06月04日(火) 9:00 までに見積もり回答いたします。

検討リストに追加する

HA1-2425-5 の詳細情報

型番	HA1-2425-5
メーカー	HARRIS
Acquisition Time-Max	6 us
Acquisition Time-Nom	3.2 us
Amplifier Type	SAMPLE AND HOLD CIRCUIT
Analog Input Voltage-Max	10 V
Analog Input Voltage-Min	-10 V
JESD-30 Code	R-GDIP-T14
JESD-609 Code	e0
Neg Supply Voltage Limit-Max	-20 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	CERAMIC
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	+-15 V
Qualification Status	Not Qualified
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	5.08 mm
Sub Category	Sample and Hold Circuit
Supply Current-Max	5.5 mA
Supply Voltage Limit-Max	20 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
