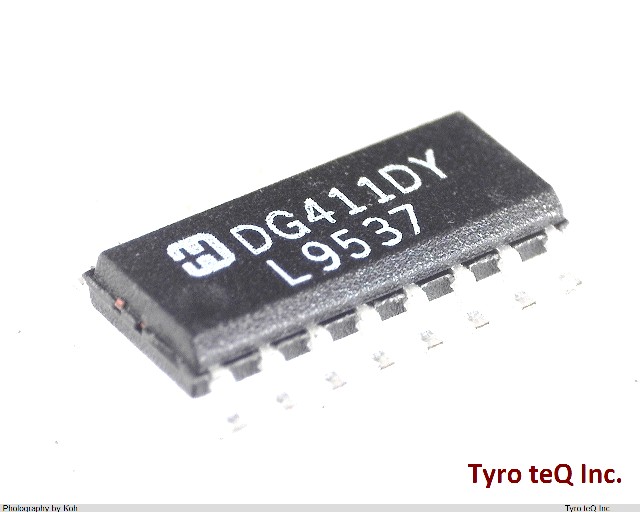

DG411DY

Name: DG411DY
Brand: HARRIS
SKU: 140201779-0000-0000-0000

DG411DY - HARRIS の商品詳細ページです。

２営業日以内に回答いたします

DG411DY の詳細情報

型番	DG411DY
メーカー	HARRIS
Additional Feature	ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY
Analog IC - Other Type	SPST
Input Voltage-Max	15 V
Input Voltage-Min	-15 V
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	9.9 mm
Moisture Sensitivity Level	1
Neg Supply Voltage-Max (Vsup)	-20 V
Neg Supply Voltage-Min (Vsup)	-5 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Normal Position	NC V
Number of Channels	1
Number of Functions	4
Number of Terminals	16
Off-state Isolation-Nom	68 dB
On-state Resistance Match-Nom	3 ohm
On-state Resistance-Max (Ron)	35 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	5,12/+-15 V
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Signal Current-Max	0.1 A
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.001 mA
Supply Voltage-Max (Vsup)	20 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Switch-off Time-Max	145 ns
Switch-on Time-Max	175 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	3.9 mm
