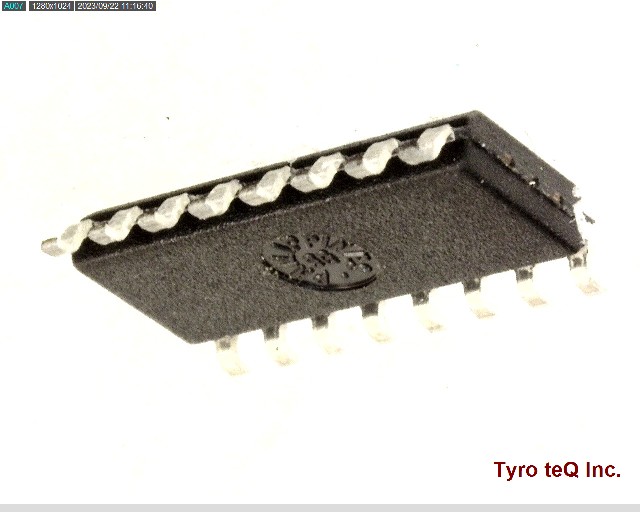

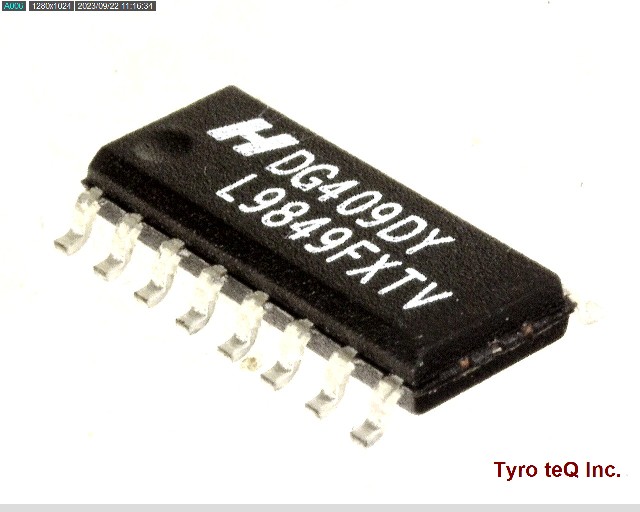

DG409DY

Name: DG409DY
Brand: HARRIS
SKU: 140195877-0000-0000-0000

DG409DY - HARRIS の商品詳細ページです。

24時間8分後以内に見積もり依頼を頂ければ、
06月04日(火) 9:00 までに見積もり回答いたします。

検討リストに追加する

DG409DY の詳細情報

型番	DG409DY
メーカー	HARRIS
Additional Feature	ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY
Analog IC - Other Type	DIFFERENTIAL MULTIPLEXER
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	9.9 mm
Moisture Sensitivity Level	1
Neg Supply Voltage-Max (Vsup)	-20 V
Neg Supply Voltage-Min (Vsup)	-5 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Channels	4
Number of Functions	1
Number of Terminals	16
Off-state Isolation-Nom	75 dB
On-state Resistance Match-Nom	1.5 ohm
On-state Resistance-Max (Ron)	100 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	12/+-15 V
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Signal Current-Max	0.02 A
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	2 mA
Supply Voltage-Max (Vsup)	20 V
Supply Voltage-Min (Vsup)	5 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Switch-off Time-Max	150 ns
Switch-on Time-Max	150 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	3.775 mm
