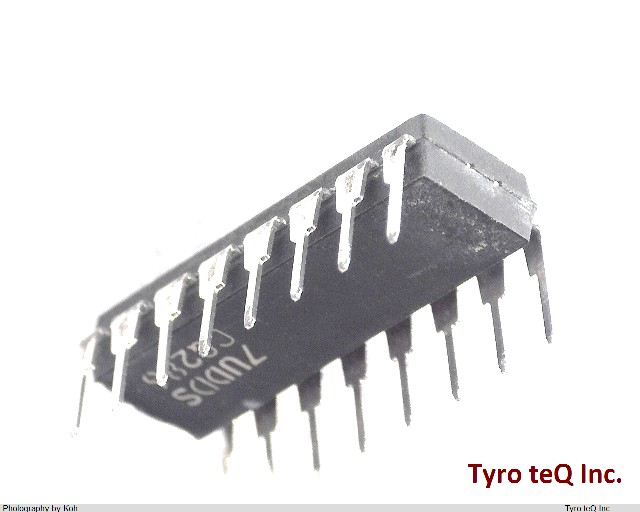

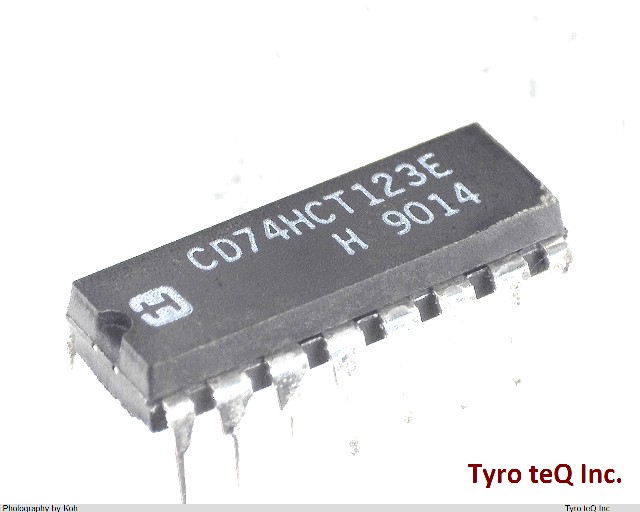

CD74HCT123E
1
-
- 個
２営業日以内に回答いたします
高速CMOS標準ロジックIC|パッケージ：Plastic DIP | Non RoHS
CD74HCT123E の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | CD74HCT123E |
|---|---|
| メーカー | HARRIS |
| 種別 | 高速CMOS標準ロジックIC |
| Additional Feature | RETRIGGERABLE |
| Family | HCT |
| JESD-30 Code | R-GDIP-T16 |
| JESD-609 Code | e0 |
| Length | 19.305 mm |
| Load Capacitance (CL) | 50 pF |
| Logic IC Type | MONOSTABLE MULTIVIBRATOR |
| Max I(ol) | 0.004 Amp |
| Number of Bits | 2 |
| Number of Data/Clock Inputs | 2 |
| Number of Functions | 2 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 125 Cel |
| Operating Temperature-Min | -55 Cel |
| Output Polarity | COMPLEMENTARY |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP16 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Packing Method | TUBE |
| Power Supplies | 5 V |
| Power Supply Current-Max (ICC) | 0.08 mA |
| Propagation Delay (tpd) | 102 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Sub Category | Prescaler/Multivibrators |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | NICKEL PALLADIUM GOLD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |
| 会社名称 | Harris Corporation |
|---|---|
| 資本金 | 1890s |
| 所在地 | 1025 West NASA Boulevard Melbourne, Florida 32919-0001 USA |
| URL | http://harris.com |
