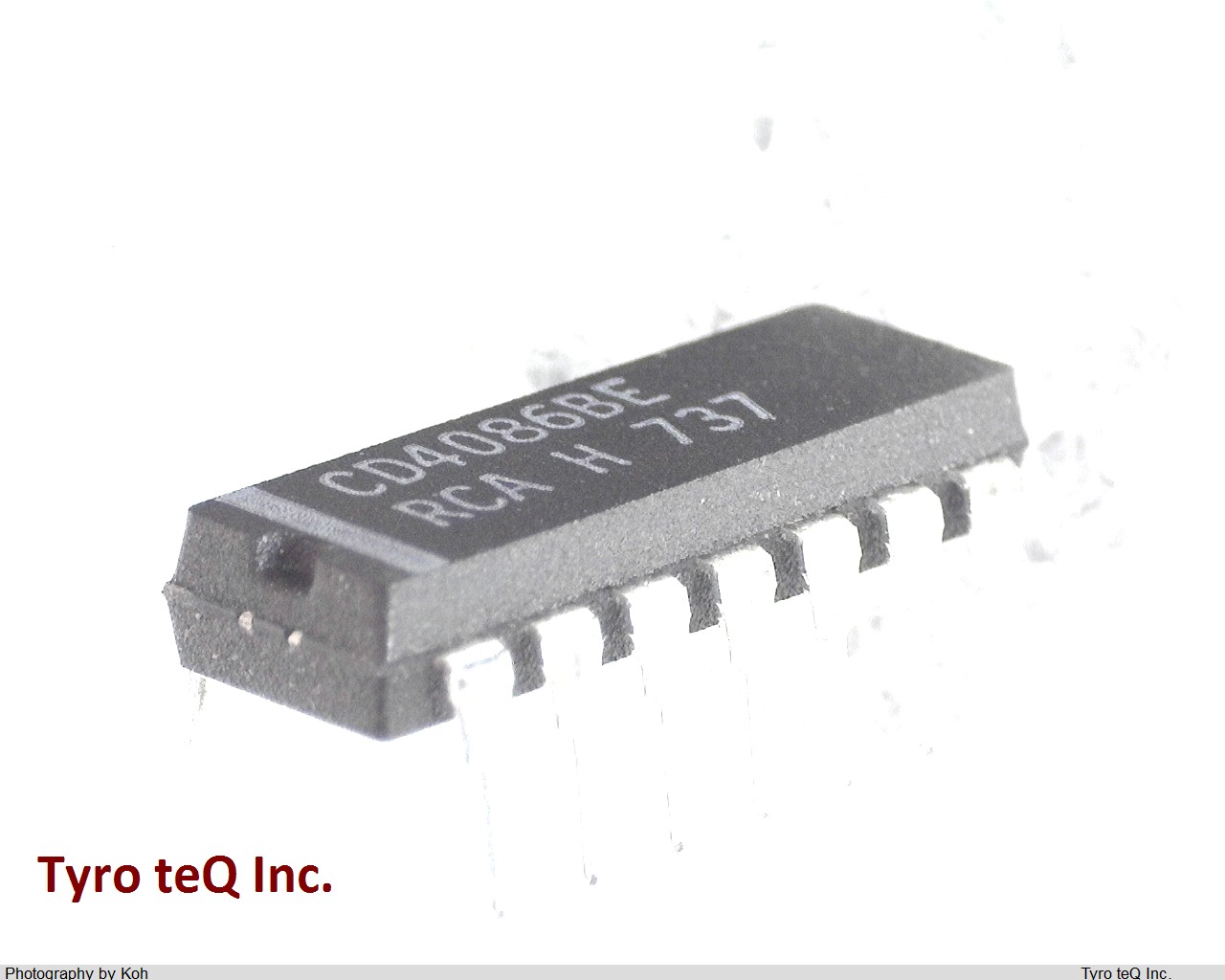

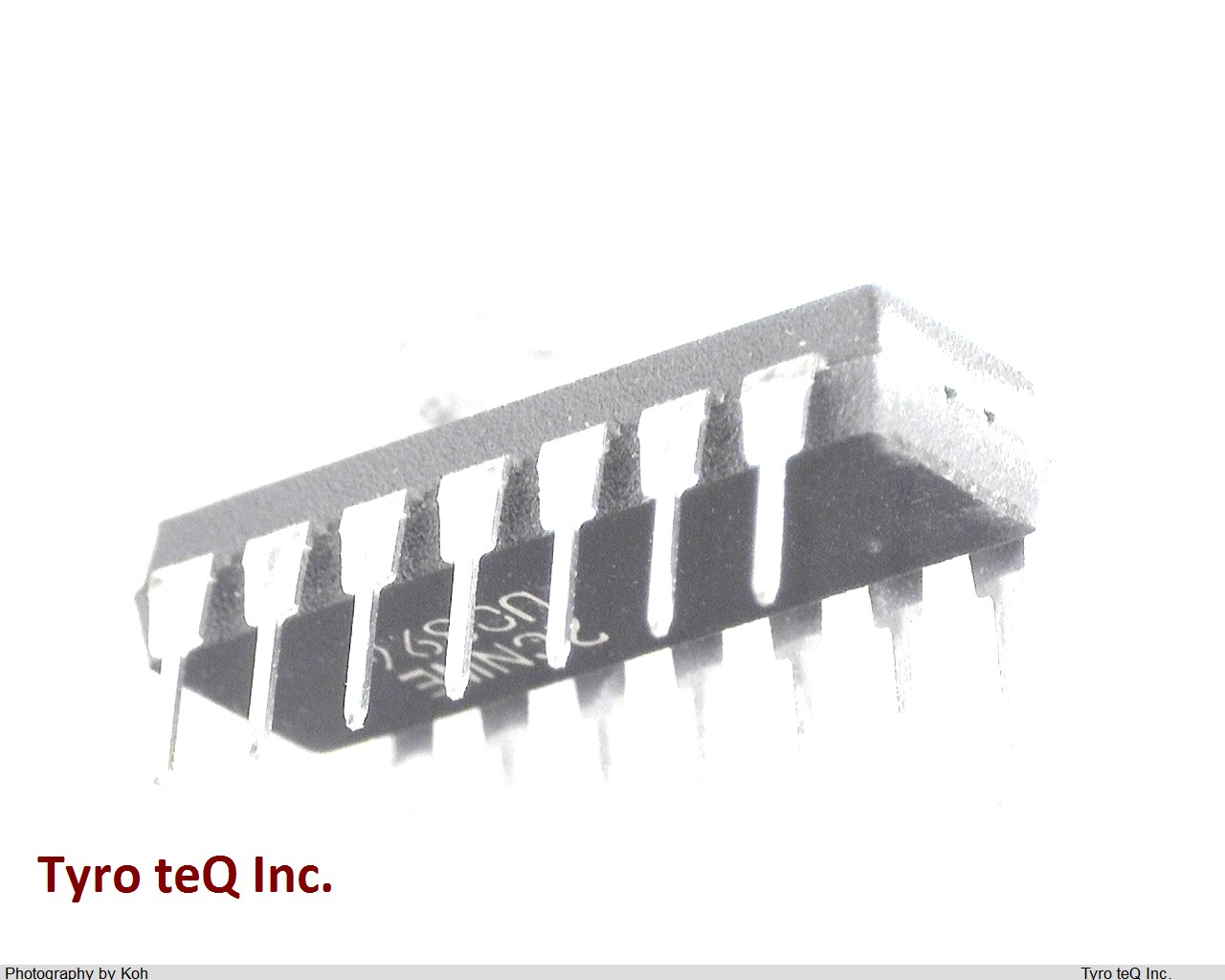

CD4086BE
データシート
1
-
- 個
２営業日以内に回答いたします
CMOS標準ロジックIC|パッケージ：Plastic DIP | Non RoHS
CD4086BE の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | CD4086BE |
|---|---|
| メーカー | HARRIS |
| 種別 | CMOS標準ロジックIC |
| データシート |  |
| Additional Feature | EXPANDABLE |
| Family | 4000/14000/40000 |
| JESD-30 Code | R-PDIP-T14 |
| JESD-609 Code | e0 |
| Length | 19.305 mm |
| Load Capacitance (CL) | 50 pF |
| Logic IC Type | AND-OR-INVERT GATE |
| Max I(ol) | 0.00042 Amp |
| Number of Functions | 1 |
| Number of Inputs | 8 |
| Number of Terminals | 14 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -55 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Packing Method | TR |
| Power Supplies | 5/15 V |
| Power Supply Current-Max (ICC) | 0.6 mA |
| Prop. Delay@Nom-Sup | 620 ns |
| Propagation Delay (tpd) | 620 ns |
| Qualification Status | Not Qualified |
| Schmitt Trigger | NO |
| Seated Height-Max | 5.08 mm |
| Sub Category | Gates |
| Supply Voltage-Max (Vsup) | 18 V |
| Supply Voltage-Min (Vsup) | 3 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | NICKEL PALLADIUM GOLD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |
| 会社名称 | Harris Corporation |
|---|---|
| 資本金 | 1890s |
| 所在地 | 1025 West NASA Boulevard Melbourne, Florida 32919-0001 USA |
| URL | http://harris.com |
