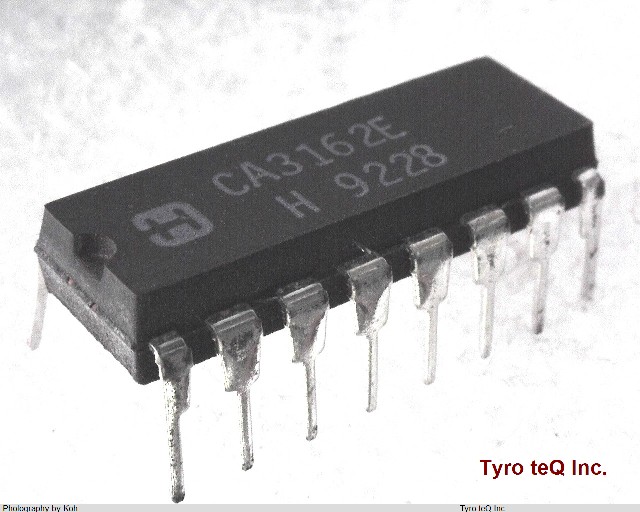

CA3162E

Name: CA3162E
Brand: HARRIS
SKU: 130576020-0000-0000-0000

CA3162E - HARRIS の商品詳細ページです。

２営業日以内に回答いたします

CA3162E の詳細情報

型番	CA3162E
メーカー	HARRIS
Analog Input Voltage-Max	0.2 V
Analog Input Voltage-Min	-15 V
Conversion Time-Max	250000 us
Converter Type	A/D CONVERTER
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.17 mm
Linearity Error-Max (EL)	0.1 %
Number of Analog In Channels	1
Number of Bits	4
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Bit Code	BINARY CODED DECIMAL
Output Format	PARALLEL, 4 BITS
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Sample Rate	9.6E-5 MHz
Seated Height-Max	5.33 mm
Sub Category	Analog to Digital Converters
Supply Current-Max	17 mA
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
