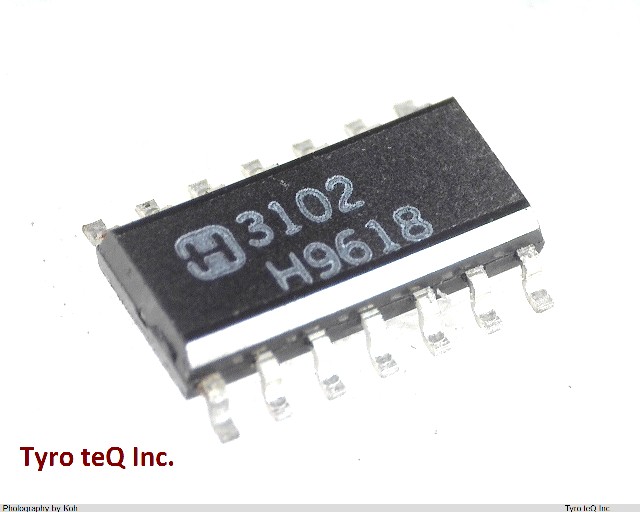

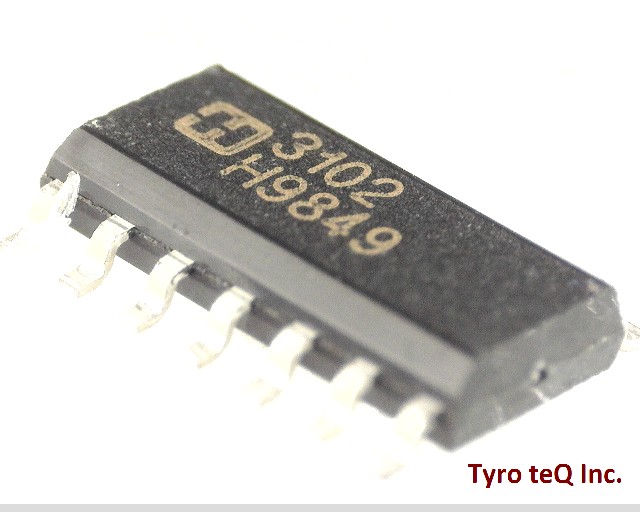

CA3102M

Name: CA3102M
Brand: HARRIS
SKU: 130589085-0000-0000-0000

CA3102M - HARRIS の商品詳細ページです。

24時間48分後以内に見積もり依頼を頂ければ、
06月04日(火) 9:00 までに見積もり回答いたします。

検討リストに追加する

CA3102M の詳細情報

型番	CA3102M
メーカー	HARRIS
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	33 uA
Bias Current-Max (IIB) @25C	33 uA
Common-mode Reject Ratio-Nom	100 dB
Frequency Compensation	NO
Input Offset Current-Max (IIO)	3 uA
Input Offset Voltage-Max	5000 uV
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e0
Length	8.65 mm
Low-Bias	NO
Low-Offset	NO
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	14
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	12 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	Operational Amplifier
Supply Voltage-Nom (Vsup)	12 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	MILITARY
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Unity Gain BW-Nom	1350000 kHz
Voltage Gain-Min	7.9432
Wideband	YES
Width	3.9 mm
