CA3078T Harris

CA3078T - HARRIS の商品詳細ページです。

1

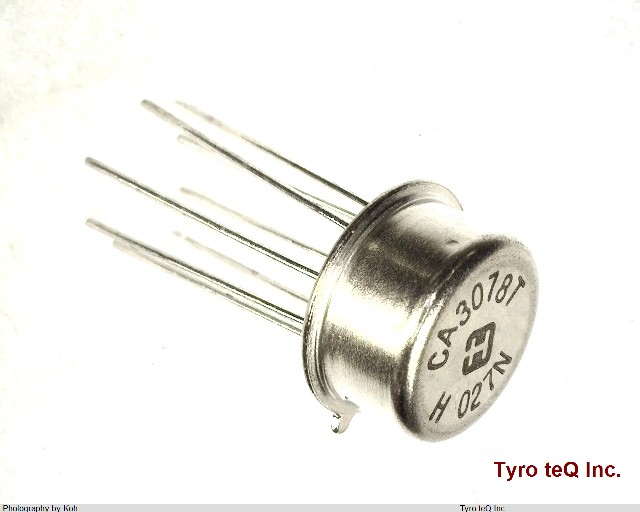

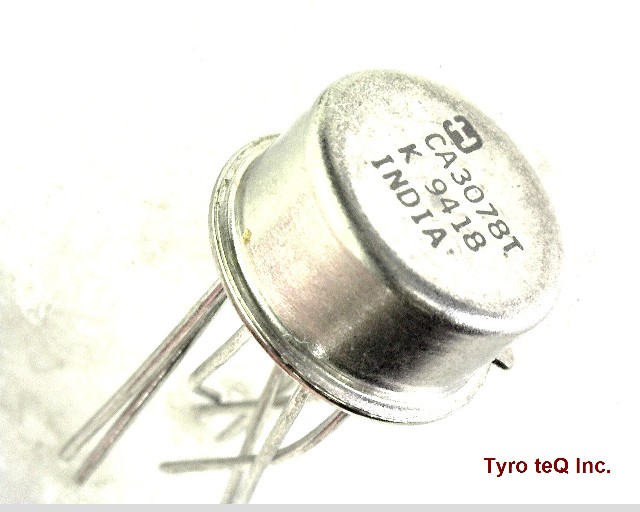

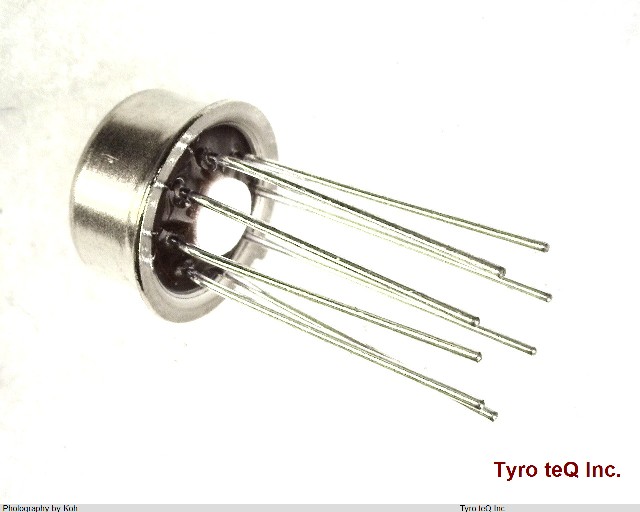

CA3078T
  • CA3078T
  • CA3078T
  • CA3078T
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

CA3078T の詳細情報

  • 仕様・詳細
  • メーカー情報
型番CA3078T
メーカーHARRIS
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.2 uA
Bias Current-Max (IIB) @25C 0.17 uA
Common-mode Reject Ratio-Min 80 dB
Common-mode Reject Ratio-Nom 110 dB
Frequency Compensation NO
Input Offset Voltage-Max 5000 uV
JESD-30 Code O-MBCY-W8
JESD-609 Code e0
Low-Offset NO
Neg Supply Voltage Limit-Max -7 V
Neg Supply Voltage-Nom (Vsup) -6 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Package Body Material METAL
Package Equivalence Code CAN8,.2
Package Shape ROUND
Package Style CYLINDRICAL Meter
Power Supplies +-0.75/+-6 V
Qualification Status Not Qualified
Screening Level MIL-STD-883 Class B (Modified)
Slew Rate-Nom 0.04 V/us
Sub Category Operational Amplifier
Supply Current-Max 0.15 mA
Supply Voltage Limit-Max 7 V
Supply Voltage-Nom (Vsup) 6 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form WIRE
Terminal Position BOTTOM
Unity Gain BW-Nom 1500 kHz
Voltage Gain-Min 25000
