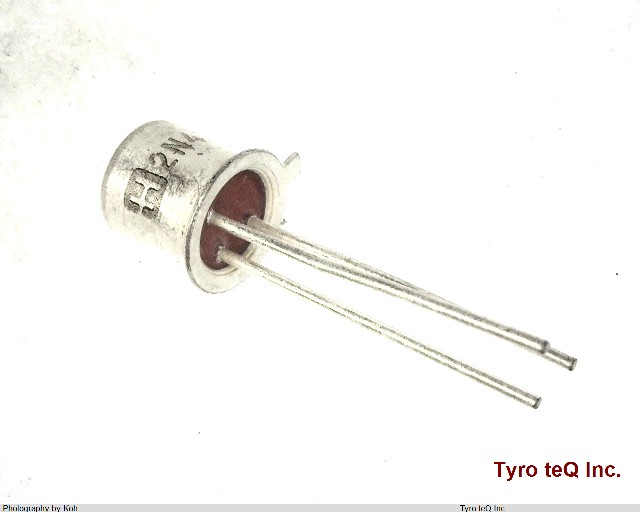

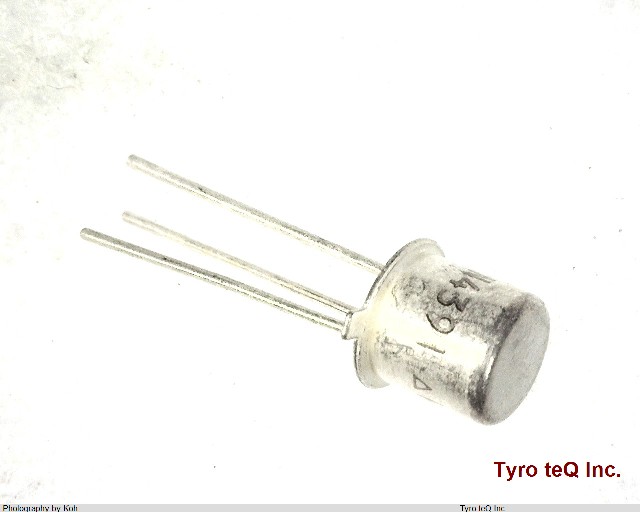

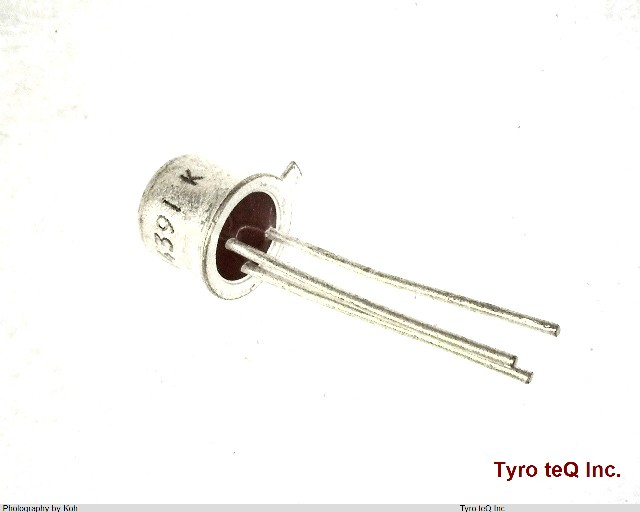

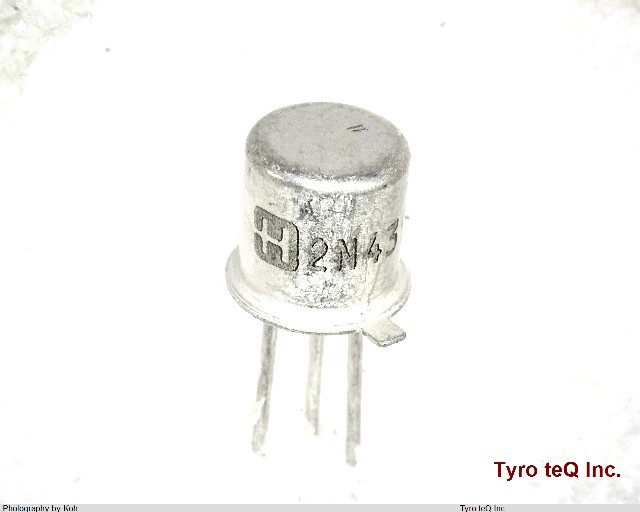

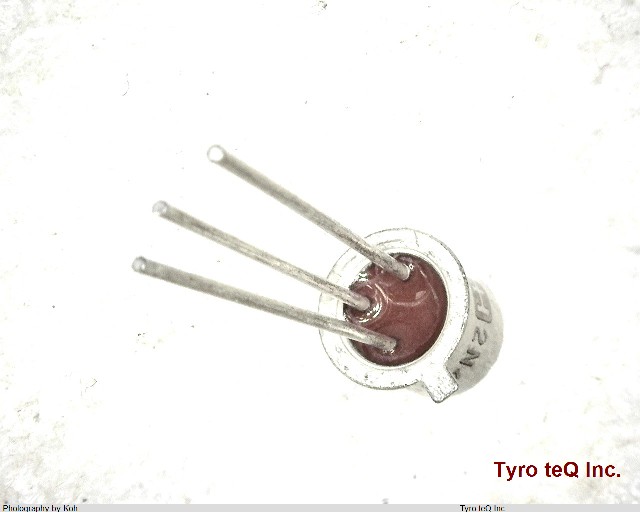

型番 | 2N4391 |
---|---|
メーカー | HARRIS |
Additional Feature | LOW INSERTION LOSS |
Case Connection | GATE |
Configuration | SINGLE |
DS Breakdown Voltage-Min | 40 V |
Drain Current-Max (ID) | 0.15 A |
Drain-source On Resistance-Max | 30 ohm |
FET Technology | JUNCTION |
Feedback Cap-Max (Crss) | 3.5 pF |
JEDEC-95 Code | TO-18 |
JESD-30 Code | O-MBCY-W3 |
JESD-609 Code | e0 |
Moisture Sensitivity Level | 1 |
Number of Elements | 1 |
Number of Terminals | 3 |
Operating Mode | DEPLETION MODE |
Operating Temperature-Max | 150 Cel |
Operating Temperature-Min | -65 Cel |
Package Body Material | CERAMIC, METAL-SEALED COFIRED |
Package Shape | RECTANGULAR |
Package Style | CHIP CARRIER Meter |
Peak Reflow Temperature (Cel) | NOT SPECIFIED |
Polarity/Channel Type | N-CHANNEL |
Power Dissipation Ambient-Max | 1.5 W |
Power Dissipation-Max (Abs) | 1.8 W |
Qualification Status | Not Qualified |
Sub Category | Other Transistors |
Surface Mount | NO |
Terminal Finish | GOLD |
Terminal Form | GULL WING |
Terminal Position | BOTTOM |
Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
Transistor Application | CHOPPER |
Transistor Element Material | SILICON |
会社名称 | Harris Corporation |
---|---|
資本金 | 1890s |
所在地 | 1025 West NASA Boulevard Melbourne, Florida 32919-0001 USA |
URL | http://harris.com |
2N4391 - HARRIS の商品詳細ページです。
